100 Gallon BTH-199 199,000 BTU Cyclone FLEX Condensing Commercial Gas Water Heater w/ Adaptive Gas Technology (NG/LP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (5)
Lift Gate
Product Highlights
Description
The Cyclone FLEX condensing water heaters by A. O. Smith are designed to meet the demanding needs of commercial applications with advanced adaptive gas technology and maximum flexibility. These water heaters offer exceptional thermal efficiency of 95% or greater, ensuring optimal energy savings and performance. Available in models ranging from 100,000 to 500,000 BTU/h, the Cyclone FLEX series incorporates a unique helical coil heat exchanger that maximizes heat transfer while reducing lime scale buildup, maintaining efficiency over time. The submerged combustion chamber design minimizes radiant heat loss, while the high-efficiency modulating premix powered burner ensures quiet operation and precise combustion control. These features make Cyclone FLEX water heaters a reliable and cost-effective solution for commercial water heating needs.
The Cyclone FLEX series also includes innovative features such as the AIQ adaptive gas control system, which adjusts to varying fuel qualities and abnormalities for improved combustion and reliability. The intelligent control system, equipped with a 7-inch color touch display and iCOMM connectivity, provides detailed status information, precise temperature control, and remote monitoring capabilities. These water heaters come standard with powered anodes for long-lasting tank protection, leak detection modules, and Permaglas® Ultra Coat glass lining for enhanced durability. With space-saving designs, flexible venting options, and compliance with stringent air quality standards, Cyclone FLEX water heaters deliver superior performance, ease of installation, and peace of mind for commercial users.
Product Features:
- ENERGY STAR certified - 95% or greater efficiency, reducing energy costs and maximizing performance
- Adaptive Gas Control System - Automatically adjusts to fuel qualities and abnormalities

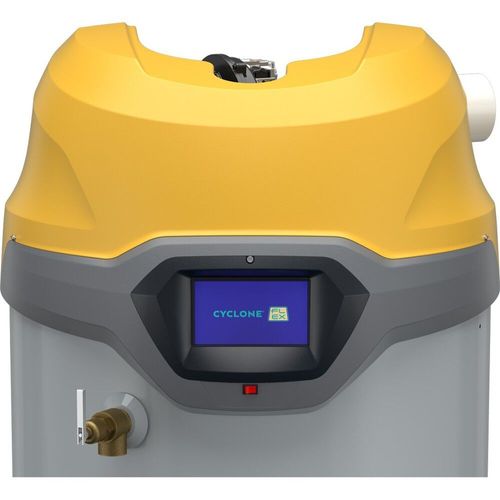

- Intelligent Control System - Features a 7-inch color touch display with iCOMM connectivity for remote monitoring and precise temperature control
- Submerged Combustion Chamber - Virtually eliminates radiant heat loss, improving overall energy utilization
- Flexible Venting Options - Supports conventional power venting or direct venting with low-cost PVC, CPVC, polypropylene, or stainless steel materials
- Leak Detection Module - Alerts users with audible alarms and notifications via iCOMM connectivity for proactive maintenance
- Space-Saving Design - Allows for flexible installation with minimal clearance requirements
- Powered Anodes - Non-sacrificial and maintenance-free, providing long-lasting tank protection in varying water conditions

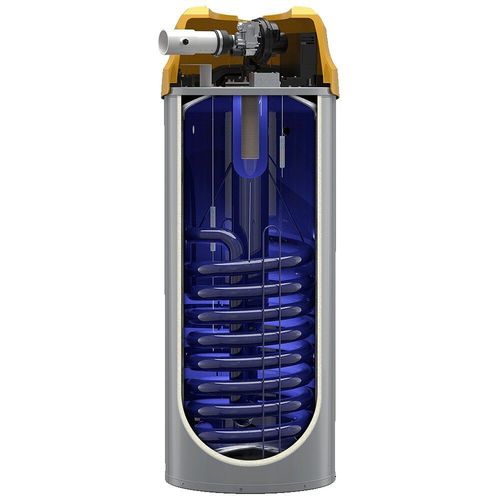

- Helical Coil Heat Exchanger - Enhances heat transfer while minimizing lime scale buildup, ensuring long-term efficiency
- 3-year limited tank warranty and 1-year limited parts warranty for added peace of mind
Specs
| Water Connection: | 1-1/2" |
|---|---|
| Efficiency: | 96% |
| BTU (Min): | 78000 |
| Height (Inches): | 76-1/2" |
| Weight (lbs): | 536 lbs |
| Voltage: | 120v |
| Fuel Type: | Propane Natural Gas |
| Energy Star Rated: | Yes |
| Application: | Plumbing |
| BTU Input: | 199000 |
| Capacity (Gallons): | 96 |
| Diameter (Inches): | 27-3/4" |
| ASME: | No |
| Vent Size: | 3" |
| Vent Type: | CPVC ABS PVC |
| Recovery 40°F Rise: | 575 GPH |
| Recovery 90°F Rise: | 256 GPH |
| Recovery 140°F Rise: | 164 GPH |
| Hertz: | 60 |
| Max Pressure: | 10.5" W.C. |
| Max Pressure (PSI): | 160 |
| Gas Connection: | 3/4" |
| Warranty: | 3 Year Limited Tank |
