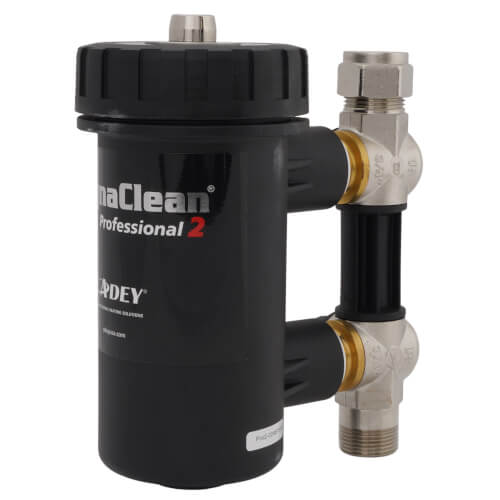

Maximum protection for hydronic heating systems
  • Ideal for 3/4" copper and 1" NPT iron pipework
  • Compact profile for tight spaces
  • Rapid in-line installation
  • Integral flow-diverters ensure 360° distribution for uniform flow around magnets, maximizing sludge capture
  • Powerful permanent magnet
  • Captures non-magnetic debris
  • Quick-release trigger and rapid-fit connectors for servicing and re-installation in seconds
  • Rotating filter connections allow customizable installation options
  • Low-profile drain valve and built-in air vent for easier maintenance
  • Bi-directional flow – either port can be designated as entry port
  • Easy dosing of ADEY® treatment products via canister
  • Full-flow valves for minimal pressure drop


Canister and Lid
  • Material: Glass reinforced nylon
  • Volume: 0.15 gallons
  • Thread: Pressure thread
  • Flow configuration: Bi-directional – any port can be inlet
  • Main lid seal: EPDM

  • Housing: Stainless steel
  • Length: 5-29/32"
  • Diameter: 3/4"

Bleed Valve
  • Body material: Nickel plated brass
  • Screw: Nickel plated brass
  • Thread interface: Metric M6
  • Seals: EPDM

Drain port
  • Drain plug material: Nickel plated brass
  • Drain plug thread: Metric M8
  • Seals: EPDM

Triple seal valves
  • Body material: Nickel plated brass
  • Seals material: Long life PTFE ball seals
  • O ring material: EPDM 70 seals x 3
  • Valve inlet/outlet: 3/4" compression
  • Valve inlet/outlet (with adapters): 1" NPT female
  • Valve to canister: EPDM
