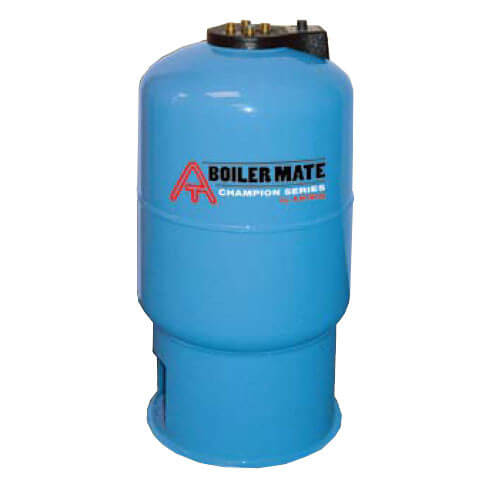

80 Gallon CH-80Z BoilerMate Champion Series Indirect-Fired Water Heater
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,768.82 each
Backorder
Get it Wed, Aug 5 - Fri, Sep 4
MANUALS (3)
This item replaces: 2782L01-8, 2782Z01-8
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 180 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
80 Gallons
49" Height
26" Diameter
Limited 5 Year Tank and Heat Exchanger/ 1 Year on Component Parts Warranty
40000 BTUs
Blue
Specs
–
| BTU Input: | 40000 |
|---|---|
| Capacity (Gallons): | 80 |
| Cold Water Inlet (NPTM): | 3/4" |
| Connection Location: | Top |
| Hot Water Outlet (NPTF): | 3/4" |
| Height (Inches): | 49" |
| Boiler Supply: | 3/4" |
| Diameter (Inches): | 26" |
| Boiler Return: | 3/4" |
| Weight (lbs): | 180 lbs |
| Boiler Connection: | NPTM |
| Warranty: | Limited 5 Year Tank and Heat Exchanger/ 1 Year on Component Parts |
| Color: | Blue |
| Application: | Plumbing |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
2 Replacement Parts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Well Engineered Design
Replaceable Coil in a Plastic Tank is a great Idea for Long Term Install
Joel
Fennimore, WI
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: I recently got delivered a CH80Z this should be a 80 gallon tank, however the label on the tank itself says "Storage Capacity 72 Gallons" why doe it not say 80 gallons
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe tank is 80 gallons, but the heat exchanger inside takes up some of that capacity.
Was this review helpful to you?
Q: What is the maximum Pressure and Temperature of the 80 gal CH-80Z? What is the R value of the tank insulation? What is the delivery time to Southern California (San Diego area)
Asked by JDavid 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe maximum temperature is 145. The maximum recommended pressure is 80 psi (unit is rated to 150 psi).
Was this review helpful to you?
