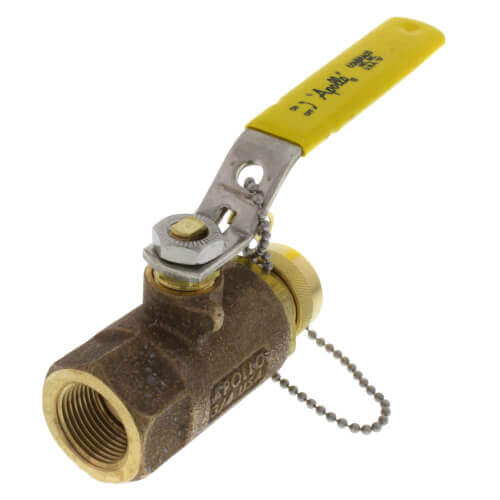

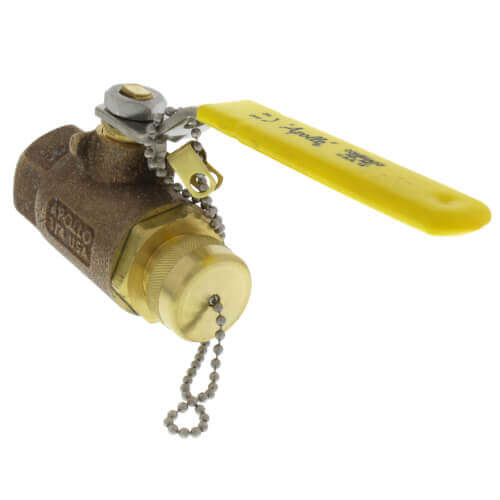

1/2" Full Port Cap & Chain Ball Valve w/ Reverse Handle
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (2)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2"
FNPT x FNPT Connection
Brass
Lever
No
Full Port
Description
–
Ideally suited for HVAC systems, these valves allow direct connections to hoses. Valve
features a securely attached cover (includes chain) which prevents damage to hose
threads. -200 model designed for soft soldering into lines without disassembly.
Features:
Performance Rating:
Approvals:
Features:
- Stainless Steel Lever & Nut
- Blow-Out-Proof Stem Design
- Adjustable Packing Gland
- RPTFE Seats and Stuffing Box Ring
- Cap & Chain protects hose threads
- Heavy brass cap is full pressure rated
- Reverse Handle
- NPT x 3/4" NPSH
- Manufactured and 100% Factory Tested in the USA
Performance Rating:
- Maximum Pressure: 600 psi CWP
- Vacuum Service to 29 in. Hg
Approvals:
- MSS SP-110; Ball Valves Threaded, Socket-Welding, Solder Joint, Grooved and Flared Ends
Specs
–
| Size: | 1/2" |
|---|---|
| Max Pressure (PSI): | 600 |
| Material: | Brass |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Handle Style: | Lever |
| Application: | Plumbing |
| Features: | Hose Drain |
| Valve Construction: | 2 piece |
| Lead Free: | No |
| Port Type: | Full Port |
