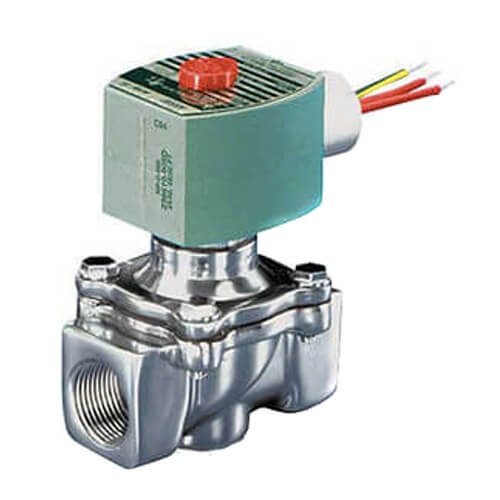

Main product image of 3/8" Normally Closed Gas Shutoff Valve, 1.2 CV, 24v (64,400 BTU)

Hover image to zoom

3/8" Normally Closed Gas Shutoff Valve, 1.2 CV, 24v (64,400 BTU)

Name: 3/8" Normally Closed Gas Shutoff Valve, 1.2 CV, 24v (64,400 BTU)
Brand: Asco RedHat
SKU: 8040H008-24V
Price: 104.89 USD
Availability: OutOfStock

Brand:

Asco RedHat

SKU:

8040H008-24V

Rating:

(0)

Q&A:

(0)

3/8" Normally Closed Gas Shutoff Valve, 1.2 CV, 24v (64,400 BTU)

Hover image to zoom

8040H008-24V has been discontinued

Discontinued October 19, 2023

This product was discontinued by the manufacturer.

MANUALS (1)

Submittal Sheet

This item replaces: 8040H8-24V

Product Highlights

–

Normally Closed

24V, 120v

3/8"

2-Way

1.2 Cv

125°F Max Temp

Description

–

Note: To directly replace this item, please purchase both 238210-005-D and 8040H008.

Aluminum valves can be used in both double block and vent gas burners.

Features

2-way normally closed operation
For gas pilot or main control of commercial and industrial gas burners
Valves provided with 1/8" NPT upstream and
Downstream pipe taps with plugs for routine testing
Mountable in any position

Valve Response Time: Opening Time: Less than 1 second; Closing Time: Less than 1 second

Specs

–

Size:	3/8"
Voltage:	24V 120v
Flow Capacity (Cv):	1.2
Fluid Temperature Range:	-40 F to 125 F
Capacity:	64400 BTU
Max Temp (F):	125°F
Position:	Normally Closed
Flow type:	High Flow
Wattage:	6.1
Body Pattern:	2-Way
Features:	NEMA 4 NEMA 4X
