Description

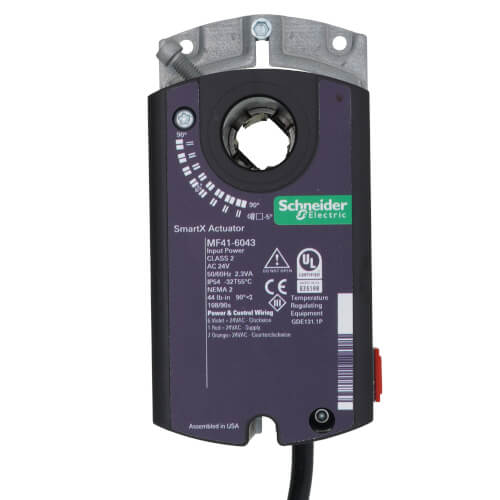

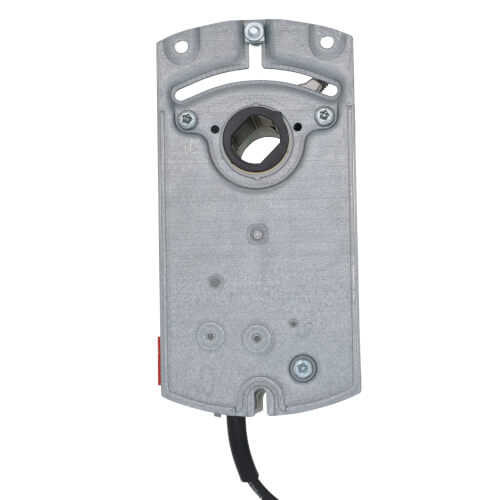

These TAC DuraDrive direct coupled 24 Vac non-spring return rotary electric actuators are designed for three-position (floating) control of dampers.

Features
  • Compact, lightweight design
  • Manual override
  • 5° preload as shipped from factory
  • Plenum cabling
  • Feedback potentiometer models available
  • cUL and UL listed; plenum versions also CE certified
  • Independently adjustable dual auxiliary switches available
These actuators are used in constant or variable air volume installations for control of HVAC dampers requiring up to 35 lb-in (4 Nm) or 70 lb-in (8 Nm).
Read more
Specs
Fail Safe Mode:
Non-Spring Return
Actuator Type:
Floating
Voltage:
24v
Torque:
35 lb-in
×
