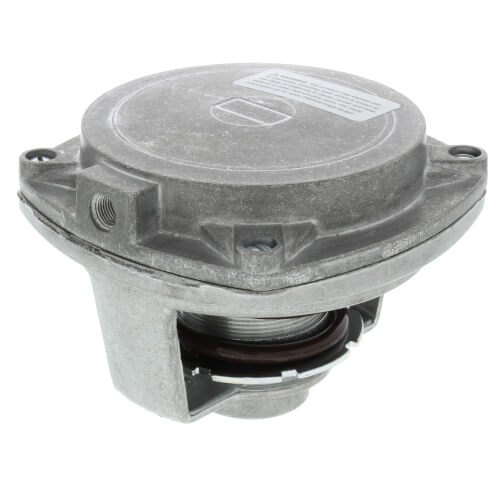

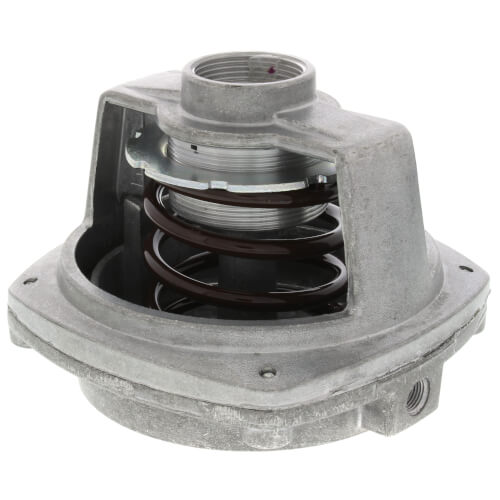

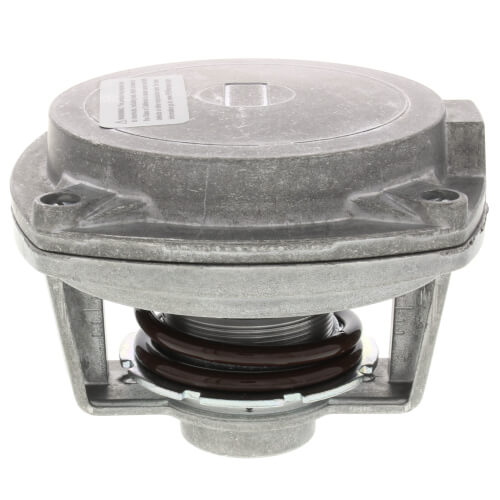

11 sq. in Damper Actuator (3-6 psig)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$201.95 each
In Stock
Get 14 Mon, Jun 8
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
These valve actuators, with an 11 sq. in. (71 cm2)
effective diaphragm area, are used with TAC VB-7xxx
series valves for proportional pneumatic control of hot
water or chilled water valves.
The MK-46xx and MK4-46xx Series may also be
mounted on discontinued 1/2" through 1-1/4" TAC
VB-111, VB-131, VB-314, and VB-9xxx series valves.
Application
Application
- Rugged die cast aluminum housing
- Replaceable beaded molded neoprene diaphragm
- Built-in spring to retract output shaft on loss of air pressure
- Adjustable start point
- Multiple spring ranges for various applications
- 1/2" nominal stroke
Specs
–
| Fail Safe Mode: | Spring Return |
|---|---|
| Actuator Spring Range: | 3 to 6 psig |
| Operating Temp Range: | -20 to 220° F |
| Air Connections: | 1/8" FNPT |
| Max. Working Pressure: | 30 psig |
