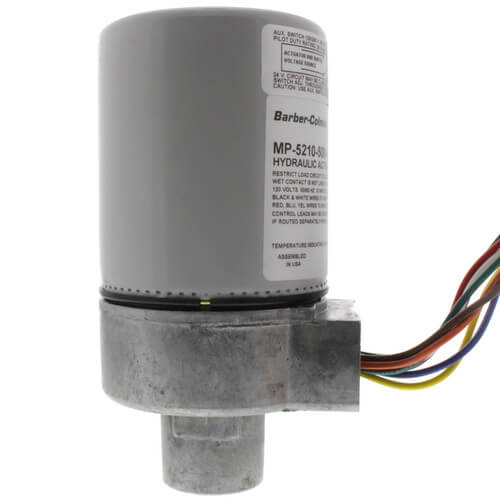

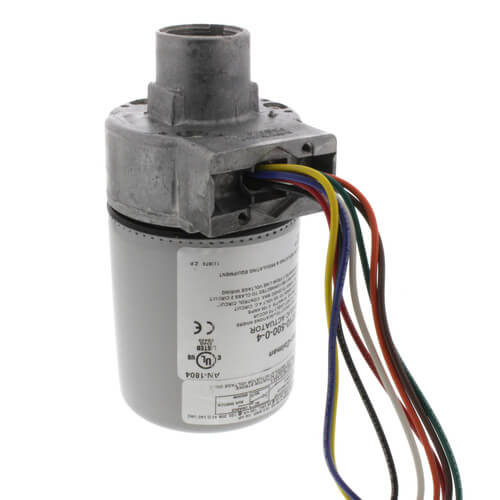

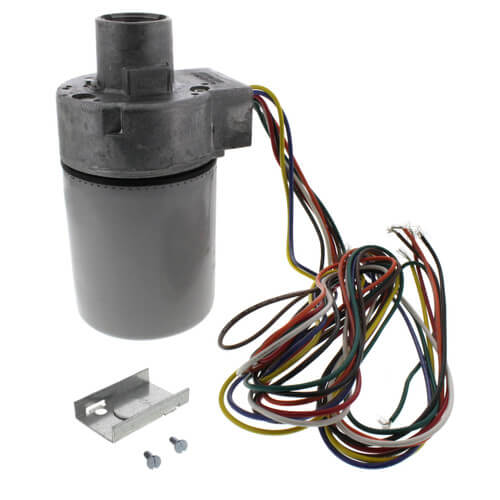

Modulating Valve Actuator w/ Aux. Switch (120V)

The MP-5200 Series actuators are for the electronic proportional control of dampers, valves, or program switches which require the return to normal position upon power interruption. This series is compatible with 2 to 15 Vdc input signals from TAC System 8000TM, TAC NETWORK 8000, and TAC DMS DDC controllers.

Features

• Linear motion output shaft controlled by a variable dc voltage input signal.
• Spring return.
• Nominal 3 Vdc operating span.
• Fixed start point and non-positive positioning.
• 10,000 ? or greater input impedance.
• 24 Vac, 120 Vac, and 240 Vac models
• Optional adjustable SPDT auxiliary switch.
• Available in damper models or base models that require damper or valve linkage.
• Die cast lower housing and painted steel upper housing.
• Hydraulic actuator with oil-immersed motor, transducer, and pump.
• Internal feedback circuitry provides non-positive positioning control in relation to the controller signal.
