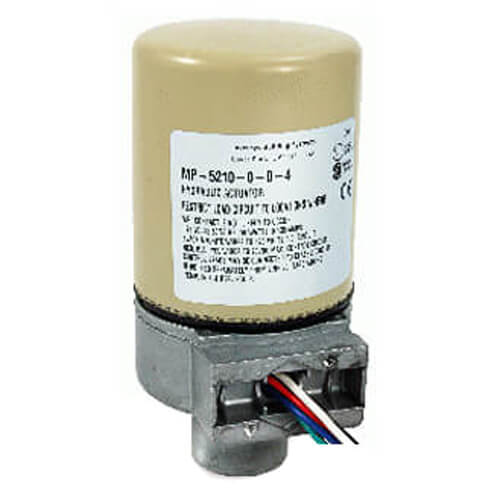

Modulating Electronic Valve Actuator (24V)

The MP-5200 Series actuators are for the electronic proportional control of dampers, valves, or program switches which require the return to normal position upon power interruption. This series is compatible with 2 to 15 Vdc input signals from TAC System 8000TM, TAC NETWORK 8000, and TAC DMS DDC controllers.

Features

• Linear motion output shaft controlled by a variable dc voltage input signal.
• Spring return.
• Nominal 3 Vdc operating span.
• Fixed start point and non-positive positioning.
• 10,000 Ohm or greater input impedance.
• Optional adjustable SPDT auxiliary switch.
• Available in damper models or base models that require damper or valve linkage.
• Die cast lower housing and painted steel upper housing.
• Hydraulic actuator with oil-immersed motor, transducer, and pump.
• Internal feedback circuitry provides non-positive positioning control in relation to the controller signal.
