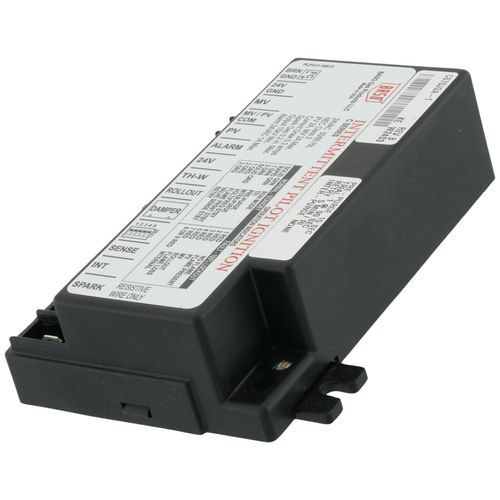

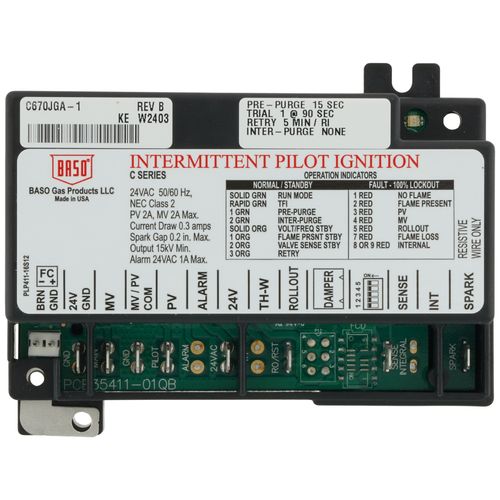

The C670JGA-1 Intermittent Pilot Ignition Control is a
safety control designed for indirect burner ignition and
supervision, for use with all gases and applicable to
gas-fired appliances.
The C670JGA-1 is a microprocessor based ignition
control. The microprocessor provides reliable software
control of all timings and operates a diagnostic
Light-Emitting Diode (LED). It provides ignition
sequence, flame monitoring, and safety shutoff for
intermittent pilot boilers, furnaces and other heating
appliances.
Features:
- Pre-Purge: 15 Seconds
- Retry: None
- Trial for Ignition: 85 Seconds
- Inter-Purge: 15 Seconds
- PV: 2A Max
- MV: 4A Max
- Current Draw: 0.2 Amps
- Spark Gap 0.2 IN. Max
New Module Changes
- The new module is a direct replacement for BG1600M01CR.
- It offers additional mounting options (to match Fenwal and Honeywell).
- It provides a 3 color LED for troubleshooting as well as added test pins for taking a flame signal reading.
- New grounding strip eliminating the additional burner ground.
- 2 year warranty.
