13" Air Tube Combination w/ F3 Head for AF, AFG Series
Hover image to zoom

13" Air Tube Combination w/ F3 Head for AF, AFG Series

13" Air Tube Combination w/ F3 Head for AF, AFG Series
Hover image to zoom
$116.57 each
In Stock
In Stock
Get 5 Mon, Feb 26
More Available
Fast Track Logo
Order by today, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Length (Inches) icon
13" Length
Used With icon
Beckett AFG, Beckett AF

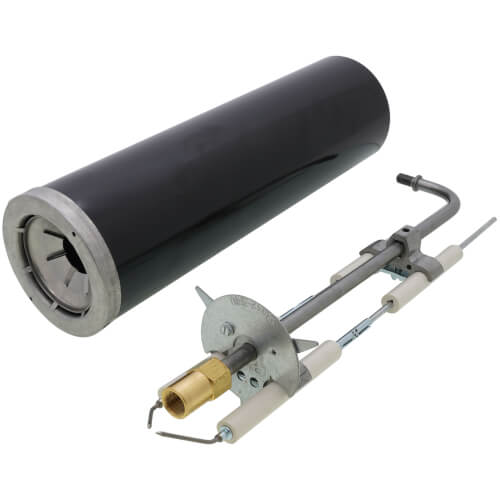

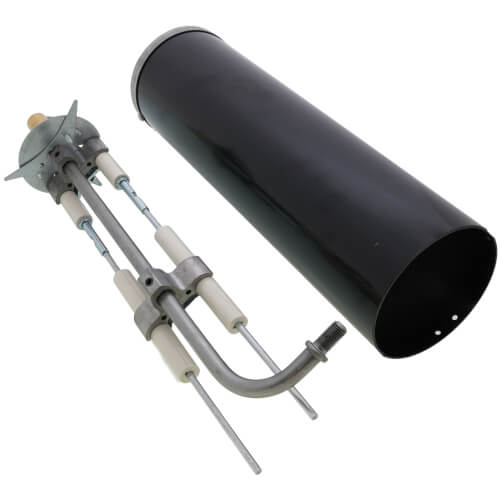

Note: This product is an air tube with nozzle line electrode assembly and Fixed Retention Head. Oil Nozzles are sold separately.

Please check the Manuals section below to view the Retention Head Selection Chart.

Air Tube
– 4” diameter steel pre-drilled for attachment to burner chassis and retention head.

Nozzle Line Electrode Assembly – Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion.

Flame Retention Head – One-piece flame retention burner head. Highly stable and intense combustion increases efficiency by as much as 35%.

This product is compatible with the AFG B100 Compliant Residential Oil Burner (BR100).

  • Fits Beckett AFG and AF burner chassis
  • Useable Length: 13”
  • Static Disk: 2-3/4”
  • Retention Head: F3
  • Firing range: 0.75-1.25 GPH


Length (Inches):


Used With:

Beckett AFG

Beckett AF
