4-1/2" Air Tube Combination w/o Head
Hover image to zoom
4-1/2" Air Tube Combination w/o Head
Hover image to zoom
$56.14 each
In Stock
In Stock
Get 20 Wed, Feb 28
Fast Track Logo
Order by today, receive Wednesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Length (Inches) icon
4-1/2" Length
Used With icon
Beckett AFG, Beckett AF

Description

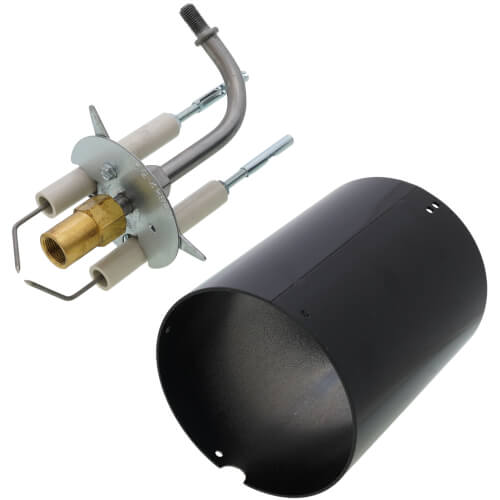

Note: This product is an air tube with nozzle line electrode assembly. Retention heads (Firing Rates), and Oil Nozzles are sold separately.

Please check the Manuals section below to view the Retention Head Selection Chart.

Air Tube
– 4” diameter steel pre-drilled for attachment to burner chassis and retention head.

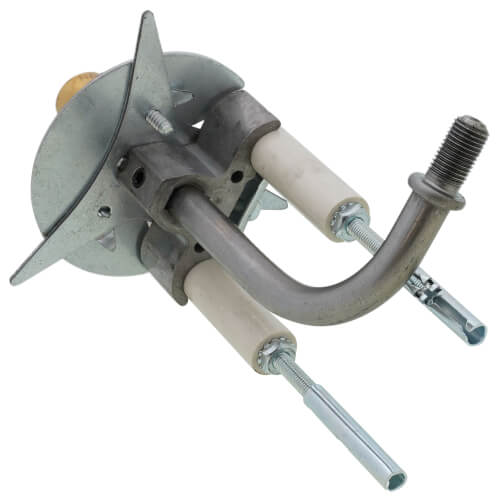

Nozzle Line Electrode Assembly – Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion.

Flame Retention Head – One-piece flame retention burner head. Highly stable and intense combustion increases efficiency by as much as 35%.

This product is compatible with the AFG B100 Compliant Residential Oil Burner (BR100).

Specifications:
  • Fits Beckett AFG and AF burner chassis
  • Useable Length: 4-1/2"
  • Overall Length: 5"
  • Static Disk: 2-3/4U
  • Retention Head: Less
  • Firing range: See F head chart

Specs

Length (Inches):

4-1/2"

Used With:

Beckett AFG

Beckett AF
