7-3/4" Air Tube Combination w/ F3 Head for AF, AFG Series

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

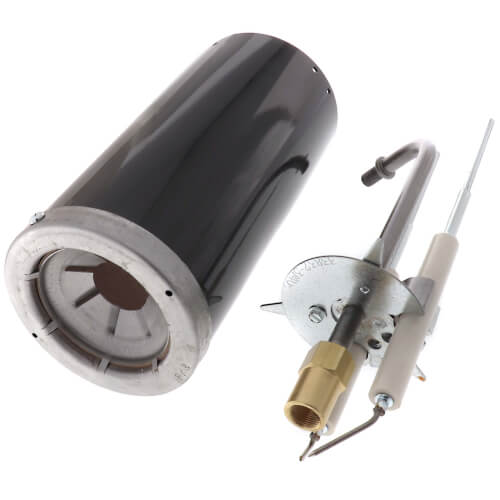

Note: This product is an air tube with nozzle line electrode assembly and Fixed Retention Head. Oil Nozzles are sold separately.

Air Tube – 4” diameter steel pre-drilled for attachment to burner chassis and retention head.

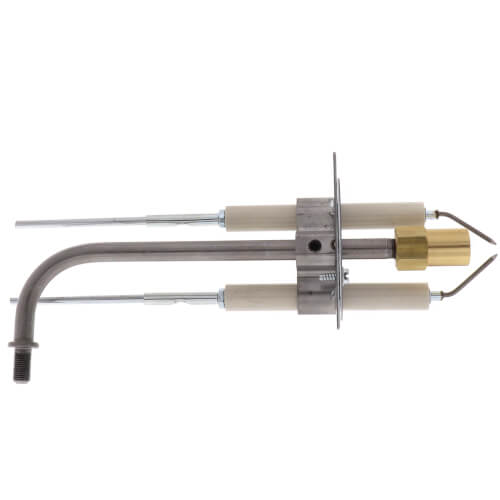

Nozzle Line Electrode Assembly – Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion.

Flame Retention Head – One-piece flame retention burner head. Highly stable and intense combustion increases efficiency by as much as 35%.

Specifications:

• Fits Beckett AFG and AF burner chassis
• Useable Length: 7-3/4”
• Overall Length: 7-3/4”
• Static Disk: 2-3/4”
• Retention Head: F3
• Firing range: 0.75-1.25 GPH
