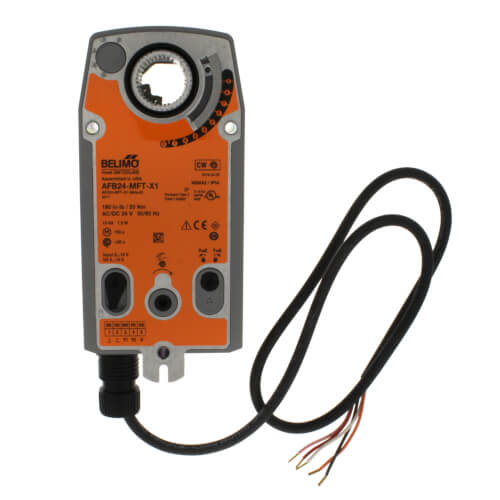

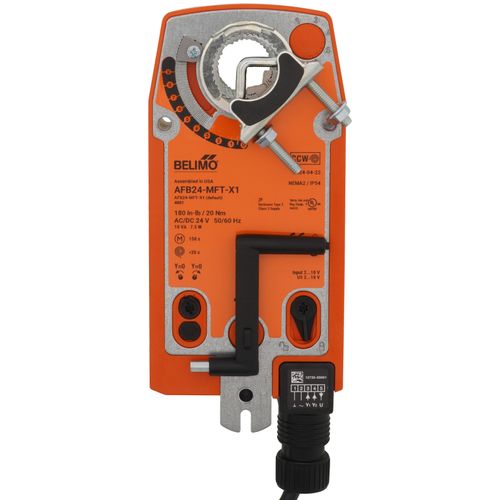

Spring Return Multi Function Modulating Valve Actuator (24V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$456.31 each
In Stock
Get 2 Thu, Mar 23
More Available
Order by today, receive Thursday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
For proportional modulation of dampers and control valves in HVAC systems.
The AFB24-MFT provides mechanical spring return operation for
reliable fail-safe application.
Default parameters for 2 to 10 VDC applications of the AFB24-MFT actuator are assigned during manufacturing. If required, custom versions of the actuator can be ordered. The parameters noted in the Technical Data table are variable. These parameters can be changed by three means:
Default parameters for 2 to 10 VDC applications of the AFB24-MFT actuator are assigned during manufacturing. If required, custom versions of the actuator can be ordered. The parameters noted in the Technical Data table are variable. These parameters can be changed by three means:
- Pre-set configurations from Belimo
- Custom configurations from Belimo
- Configurations set by the customer using the MFT PC tool (version 3.4 or higher) software application.
- Handheld ZTH-GEN
Specs
–
| Actuator Type: | Modulating |
|---|---|
| Fail Safe Mode: | Spring Return |
| Power Consumption: | 7.5W (running) 3W (holding) |
| Direction of Rotation: | Reversible w/ built-in switch (motor) |
