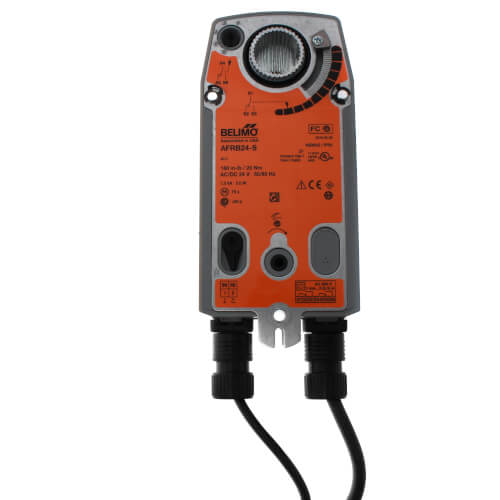

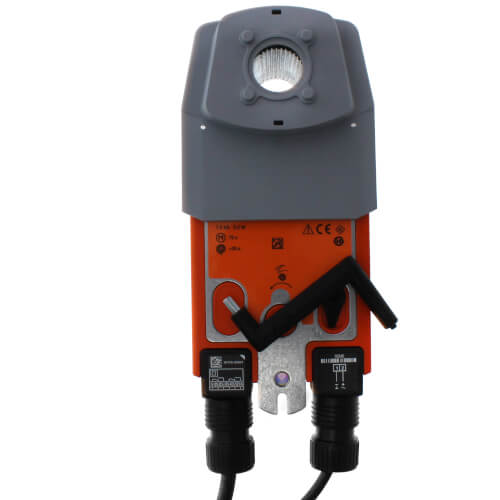

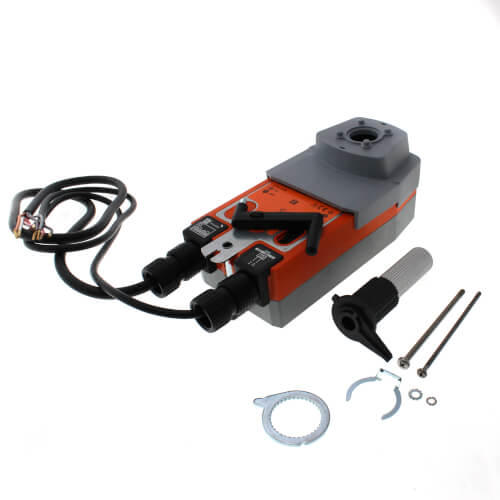

Spring Return Fail-Safe, Valve Actuator, 24 VAC/DC W/ Aux Switch
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$596.08 each
In Stock
Get 2 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
180 lb-in Torque
5 Year Warranty
Description
–
AFR series actuators are used with B6 Series, Two Way Flanged Ball Valves.
Application: This valve is typically used in air handling units on heating or cooling coils, and
fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.
Specs
–
| Actuator Type: | Two Position |
|---|---|
| Fail Safe Mode: | Spring Return |
| Power Supply: | 24 VAC/DC |
| Torque: | 180 lb-in |
| Running Time: | 20 sec @ -4°F to 122°F (spring) < 60 sec @ -22°F (spring) < 75 Seconds (motor) |
| Power Consumption: | 2.5W (holding) 5W (running) |
| VA Rating: | 7.5 |
| Auxiliary Switch: | 2 SPDT |
| Ambient Temperature: | -22°F to +122°F |
| Control Input Values: | On/Off |
| Manual Override: | Yes |
| Direction of Rotation: | Reversible w/ cw/ccw mounting |
| Warranty: | 5 Year |
