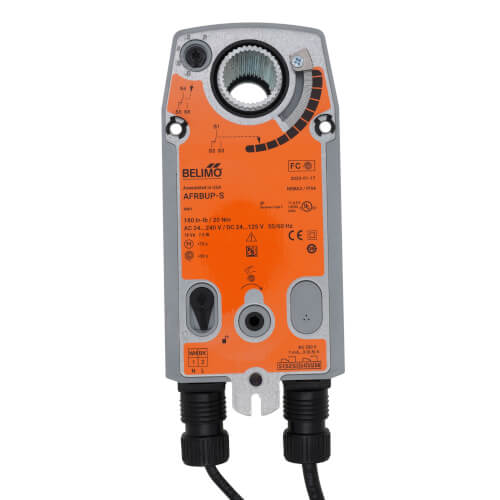

Spring Return Fail-Safe, On/Off Valve Actuator w/ Auxilary Switch, 24-240 VAC
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$456.30 each
In Stock
Get 5 Mon, Dec 11
More Available
Order by today, receive Monday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
180 lb-in Torque
5 Year Limited Warranty
Description
–
AFR series actuators are used with B6 Series, Two Way Flanged Ball Valves.
Application: This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.
Application: This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.
Specs
–
| Fail Safe Mode: | Spring Return |
|---|---|
| Actuator Type: | Two Position |
| Power Supply: | 24 to 240 VAC |
| Torque: | 180 lb-in |
| Running Time: | <75 Seconds (motor) 20 sec @ -4°F to 122°F (spring) < 60 sec @ -22°F (spring) |
| Ambient Temperature: | -22°F to +122°F |
| Control Input Values: | On/Off |
| Manual Override: | Yes |
| Direction of Rotation: | Reversible w/ cw/ccw mounting |
| Warranty: | 5 Year Limited |
| Features: | Auxilary Switch |
