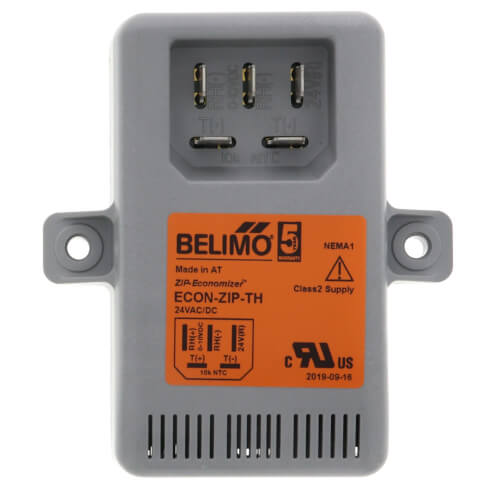

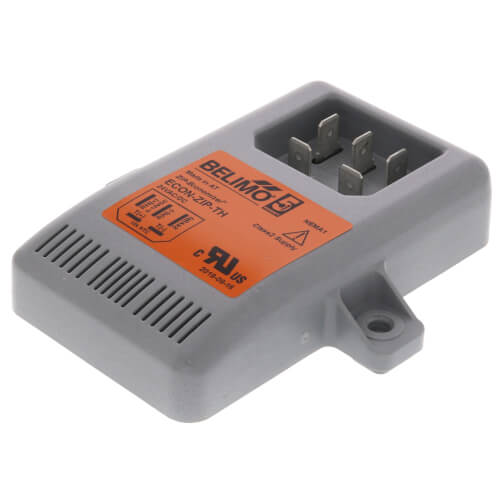

ZIP Economizer, Temperature and Humidity Sensor
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$97.20 each
In Stock
Get 23 Fri, Mar 24
More Available
Order by 4PM, receive Friday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Product Features:
Temperature and humidity sensor in the same footprint
Reliable and accurate
0-10VDC output to relative humidity
NTC 10KOhm temperature sensor
Large operating range: -40°F…140°F; 0-100% RH
Application:
ECON-ZIP-TH Sensor may be used to measure temperature and humidity in the outdoor air or return air location. The temperature and humidity output is via 2 discrete channels that can be independently measured with a multimeter. One sensor is used in the outdoor air intake for single enthalpy changeover strategy. An additional sensor can be added in the return air stream for differential changeover strategy. When using the ECON_ZIP_TH it is not necessary to use a separate temperature sensor ECON-ZIP-10K for OAT or RAT.
Technical Data:
Application:
ECON-ZIP-TH Sensor may be used to measure temperature and humidity in the outdoor air or return air location. The temperature and humidity output is via 2 discrete channels that can be independently measured with a multimeter. One sensor is used in the outdoor air intake for single enthalpy changeover strategy. An additional sensor can be added in the return air stream for differential changeover strategy. When using the ECON_ZIP_TH it is not necessary to use a separate temperature sensor ECON-ZIP-10K for OAT or RAT.
Technical Data:
- Power Supply: 24 VAC ± 20%, 50/60Hz, Class 2 power source
- Current Consumption: Max. 5mA
- Rated Impulse Voltage: 800V
- Connectors: 1/4" male spade connectors
- Environmental: RoHS conformally coated
- Software Class: A
- Control Pollution Degree: 3
- Temperature Sensor Type: NTC 10kOhm
- Humidity: 0 to 100% RH
- Humidity Sensor Type: 0-10VDC (0 to 100% RH) max load 10kOhm, Class 2 limited energy
- Housing: NEMA 1
- Ambient Temperature Range: -40°F to +140°F (-40°C to +60°C)
- Storage Temperature Range: -40°F to +158°F (-40°C to +70°C)
- Accuracy: ± 3% 35-65% rH @ 75°F ± 5% 0-34%, 66-100% rH @ 75°F
- Response Time: <45 seconds @ 40 FPM, 75°F
- Hysterisis: <2.5% rH
- Long Term Stability: <1% rH/year
- Agency Listing: UL60730-1,-2-9,-2-13. UL2043 compliant, CE 2004/108/EC "Electromagnetic compatibility (EMC)", EN60730-1,-2-9 and-2-13
Specs
–
| Product Type: | Humidity Sensor Economizer Temperature Sensor |
|---|
