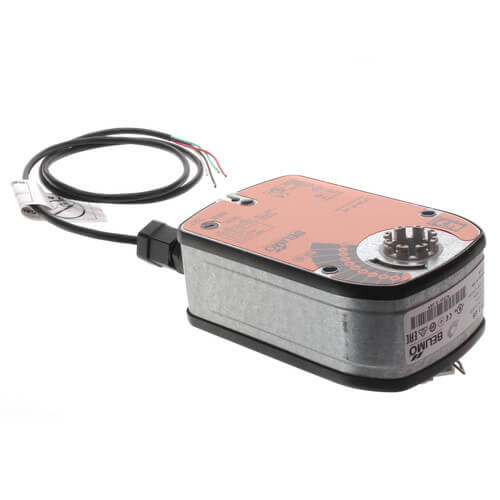

Spring Return Fail-Safe, Reversible, On/Off/Floating Point Damper Control Actuator, Direct Coupled - 24 VAC/DC (No Aux Switch)

Features:

• Cut labor costs with (10 min. installation) simple direct coupling. Actuator Centers on 1/2" shaft (K6-1, 3/4" clamp optional).
• True mechanical spring return - the most reliable failsafe.
• Mount for clockwise or counterclockwise fail-safe.
• Easy-to-adjust mechanical stop to limit damper rotation.
• Check damper position easily with clear position indicator.
• Don't worry about actuator burn-out. Belimo is overload-proof throughout rotation.
• Need to change control direction? Do it easily with a simple switch (modulating actuators).
• Built-in auxiliary switch is easy to use, offers feedback or signal for additional device.
• Microprocessor-controlled brushless DC motor increases actuator life span and reliability, provides constant running time (modulating actuators). Provided on Basic Models
• Rugged metal housing withstands rough handling in the mechanical room.
• 3 ft. cable and conduit connector eases installation.

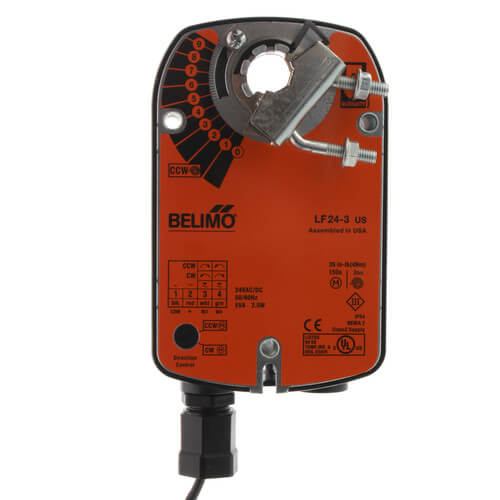

The LF24-3 is used for modulation or On/Off control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications. Control is floating point from a triac or relay, or On/Off from an auxiliary contact from a fan motor contactor, controller, or manual switch.

The LF series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides consistent torque to the damper with, and without, power applied to the actuator.
