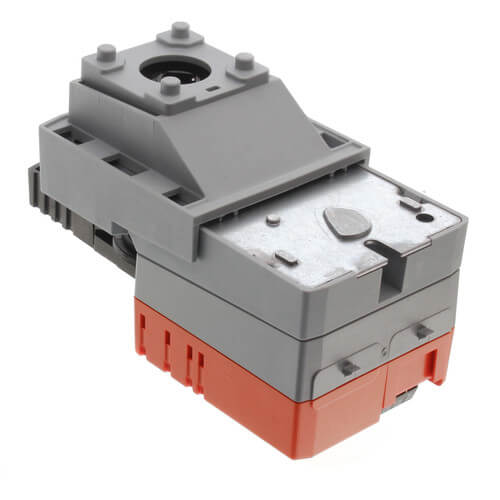

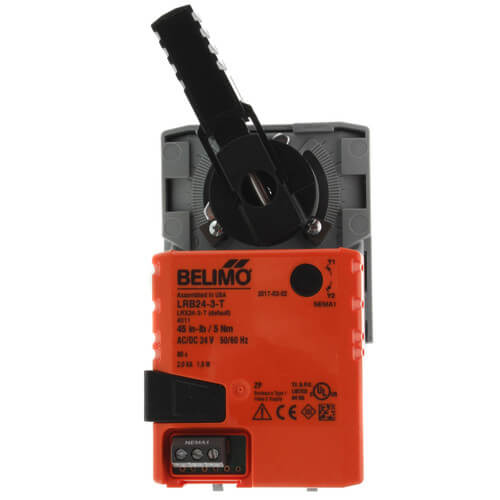

Non-Spring Return, On/Off/Floating Point Control Actuator - 24 VAC/DC (No Aux Switch, w/ Terminal Block)

Non-Spring Return, On/Off/Floating Point Control Actuator with Terminal Block

For use with 2-way Characterized Control Valves (1/2"-1-1/4") and 3-way Characterized Control Valves (1/2"-1")

Technical Data

• Control: on/off, floating point
• Power supply: 24 VAC +/- 20% 50/60 Hz, 24 VDC +/- 10%
• Power consumption: running 1.5 W, holding 0.2 W
• Transformer sizing: 2 VA (class 2 power source)
• Electrical connection: ½" conduit connector, 18 GA, plenum rated cable, 3 ft [1m]
• Overload protection: electronic throughout 0 Degrees to 95 Degrees rotation
• Input impedance: 600 omega
• Angle of rotation: 90 Degrees, adjustable with mechanical stop
• Direction of rotation: reversible with protected
• Position indication: handle
• Manual override: external push button
• Running time: 90 seconds, constant independent of load
• Humidity: 5 to 95% RH, non-condensing (EN 60730-1)
• Ambient temperature: -22 DegreesF to 122 DegreesF [-30 DegreesC to 50 DegreesC]
• Storage temperature: -40 DegreesF to 176 DegreesF [-40 DegreesC to 80 DegreesC]
• Housing type: NEMA 2/IP54
• Housing material: UL94-5VA
• Agency listings: cULus according to UL 60730-1A/-2-14, CAN/CSA E60730-1:02, CE according to 2004/108/EC and 2006/95/EC for line voltage and/or S versions
• Noise level: less than 35 dB (A)
• Quality standard: ISO 9001

**Image may not be exact representation of item.**
