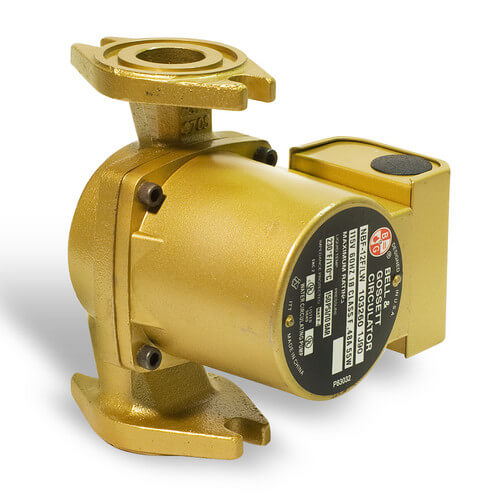

1/40 HP, NBF-12F/LW Bronze Circulator Pump
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
103260 has been discontinued
Discontinued October 9, 2011
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
1/40 HP, NBF-12F/LW Bronze Circulator Pump, Lead Free
Product Highlights
–
115V
1/40 HP
Flanged x Flanged Connection
17 MAX GPM
150 MAX PSI
Bronze
Specs
–
| Material: | Bronze |
|---|---|
| Amperage: | 0.48 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 150 |
| Type: | Pump |
| Horse Power: | 1/40 |
| Connection Size: | 1-1/4" 1-1/2" 3/4" |
| Flow Range (GPM): | 0-17 |
| Max Flow (GPM): | 17 |
| Max Head (Ft): | 12 |
| Head Range (ft.): | 0-12 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 2800 |
| Max Temp (F): | 230°F |
| Connection Type: | Flanged x Flanged |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
Showing 1-2 of 2 reviews
Replacement no contest
Replaced exact unit for ease of fit. Old unit was missing impeller but I have no idea how long it was in place. House built in 1992, possibly original unit. Works great now.
Brian
Eugene, OR
15 years ago
Verified Buyer
Was this review helpful to you?
Increase the Longevity
I bought this as an exact replacement for my existing hot water circulating pump. Previous pump lasted 8 eight years and then began to have bearing noise. Installation only took a 20 minutes. I'm using an appliance timer to only run the pump during hours when hot water is needed. I recommend this to increase the longevity of the pump. I did use a timer on the previous pump for several years and then removed it for use on something else and never reintalled. This was a mistake.
homeowner
Tullahoma, TN
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: I currently have a B&G circulator pump, NBF 12F/LW 103260 H20 (P82909), that is getting extremely hot when plugged in. It is taking several minutes for hot water to reach the showers and sinks. I had a plumber tell me it needed to be placed. First question: Does that sound accurate. Second: What circulator would I replace it with and what additional hardware would I need? Thank you in advance. The water tank is a 50 gallon.
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffBased on the information provided, we would advise following the recommendation of your plumber to replace the unit. The listed replacement is the lead free version of the pump, sku 103260LF. If the flanges from the original pump are still usable then just exchanging the defective pump with the replacement and no additional hardware should be necessary.
