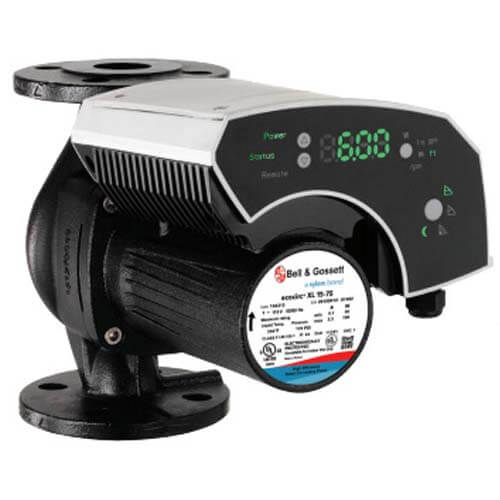

Ecocirc XL 65-130 Cast Iron Circulator, Flanged (1 HP, 208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5,355.70 each
In Stock
Get 13 Fri, Jul 10 - Mon, Jul 13
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1 HP
Flanged x Flanged Connection
175 MAX PSI
Cast Iron
14°F - 230°F
Description
–
The newly expanded ecocirc XL line, with single and three phase motor options, gives you a highly efficient circulator that enhances commercial hydronic systems with superior quality and dependability. State-of-the-art hydraulics, advanced motor design, intelligent controls and smart communication make the ecocirc single phase and three phase ideal for a broad range of HVAC and plumbing applications.
Features
Features
- Economical operation: Efficient ECM motor, Optimized hydraulics & Low operational costs
- Chilled Water Applications: Electronics separated from the pump to prevent condensation & Worry free operation even at 14°F
- User-Friendly Interface: Four logically placed buttons, Intuitive interface & Easy to set and operate
- Pump Protection: Built-in dry-run protection, Stops pump if no water & Prevent damage/repairs
- High Visibility: Clear display, Large figures and symbols & Easy to view pump status
- More Control Options: Multiple inputs, Start-stop temp control, Pressure regulation & Advanced Modbus or BACnet controls
Specs
–
| Material: | Cast Iron |
|---|---|
| Type: | High Head |
| Hertz: | 50/60 |
| Phase: | 1 |
| Horse Power: | 1 |
| Voltage: | 208/230V |
| Temperature Range (F): | 14°F - 230°F |
| Max Pressure (PSI): | 175 |
| Connection Type: | Flanged x Flanged |
| Application: | Chilled Water Domestic Hot Water |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
2 Questions2 Questions
Q: Regarding ordering an Ecocirc XL 65-130, how do I get the proper flange connection? Does an ordered pump come with a proprietary flange kit with FIP connections? Or are they a standard 150# flange?
Asked by Ben 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Ben. The flanges for this pump would be ordered separately, and they come in 1" (SKU: 101205), 1-1/4" (SKU: 101206), or 1-1/2" (SKU: 101207).
Was this review helpful to you?
Q: what is the FLA for a Ecocirc XL 65-130 (1 HP, 208-230V) s/n # 20180927 code 104459LF we have two in parallel. and they keep tripping the motor starter, finding out what the fla would help me greatly.
Asked by alex 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Alex, thanks for writing in. The FLA would be the high part of the range listed in the submittal of 3.5 amps for your pump.
Was this review helpful to you?
