Description
Specifications

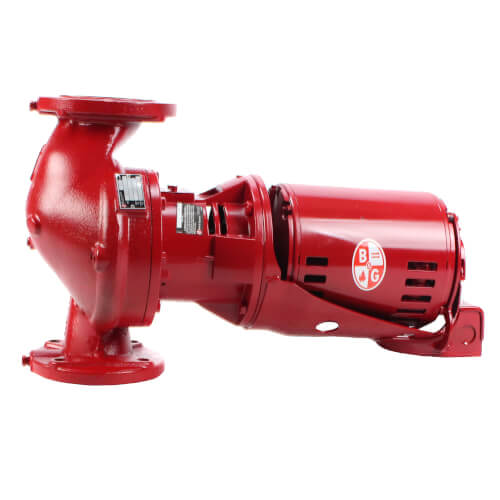

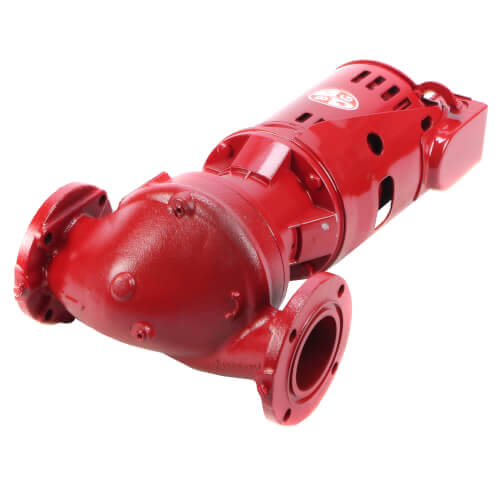

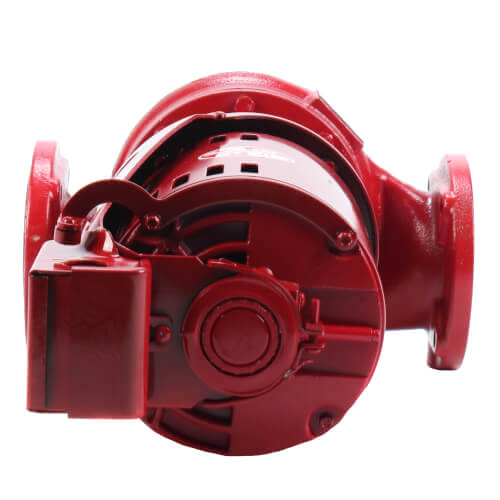

  • Type: In-Line Oil Lubricated Circulator Pump

  • Flange Size: 3.0 In.

  • Horsepower: 1/2

  • Voltage: 208/230/460

  • Phase: 3

  • Housing Material: Cast Iron Impeller

  • Material: Brass

  • Frequency: 60 Hz

  • Motor Type: ODP

  • RPM: 1750

  • Maximum Working Pressure: 125 psi

  • Flange Width: 12 in

  • Length: 20 ¼ in

Read more
Specs
Voltage:
208v
230v
460v
Material:
Cast Iron
Amperage:
1.8-1.7/0.85
Voltage:
208/230/460v
Application:
Heating
Max Pressure (PSI):
125
Type:
Pump
Horse Power:
1/2
Connection Size:
3"
Flow Range (GPM):
0-115
Max Flow (GPM):
115
Min Head (Ft):
8
Max Head (Ft):
23
Head Range (ft.):
8-23
Hertz:
60
Phase:
3
Max Temp (F):
225°F
RPM:
1750
Connection Type:
Flanged
×
