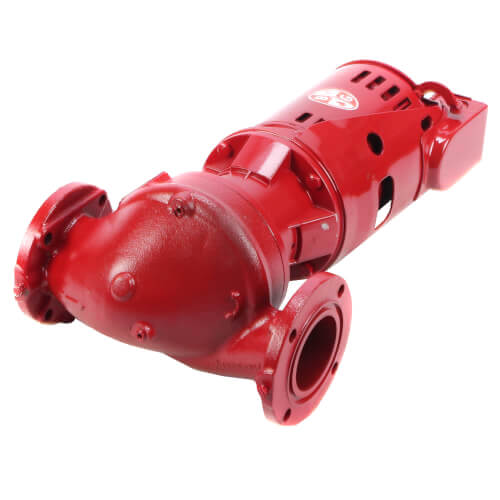

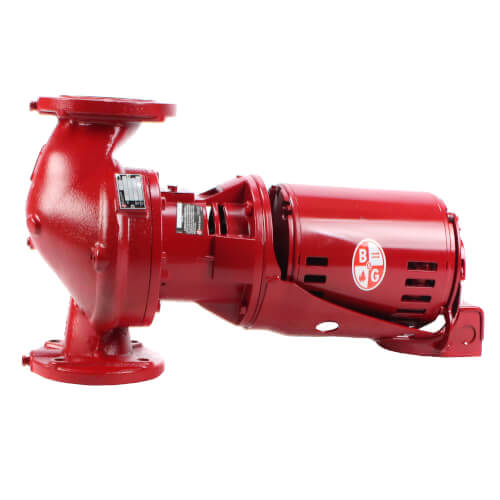

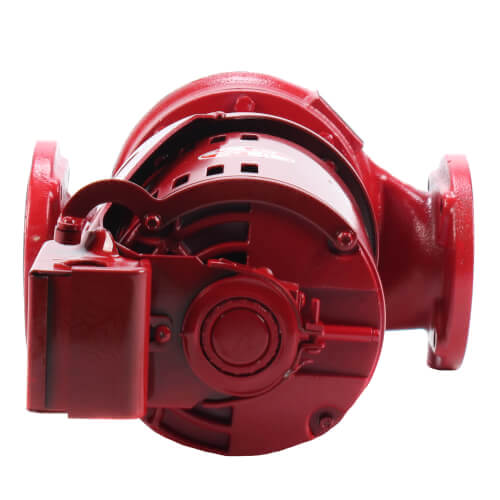

3/4 HP, PD37S Circulator Pump
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 64.1 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V, 230V
3/4 HP
Flanged x Flanged Connection
135 MAX GPM
125 MAX PSI
Cast Iron
Description
–
Specifications
- Type: In-Line Oil Lubricated Circulator Pump
- Flange Size: 3.0 In.
- Horsepower: 3/4
- Voltage: 115/230
- Phase: 1
- Housing Material: Cast Iron Impeller
- Material: Brass
- Frequency: 60 Hz
- Motor Type: ODP
- RPM: 1725
- Maximum Working Pressure: 125 psi
- Flange Width: 12 in
- Length: 20 ¼ in
Specs
–
| Voltage: | 115V 230V |
|---|---|
| Material: | Cast Iron |
| Amperage: | 7.0/3.5 |
| Application: | Heating |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 3/4 |
| Connection Size: | 3" |
| Max Flow (GPM): | 135 |
| Flow Range (GPM): | 0-135 |
| Min Head (Ft): | 11 |
| Head Range (ft.): | 11-30 |
| Max Head (Ft): | 30 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 1725 |
| Max Temp (F): | 225°F |
| Connection Type: | Flanged x Flanged |
