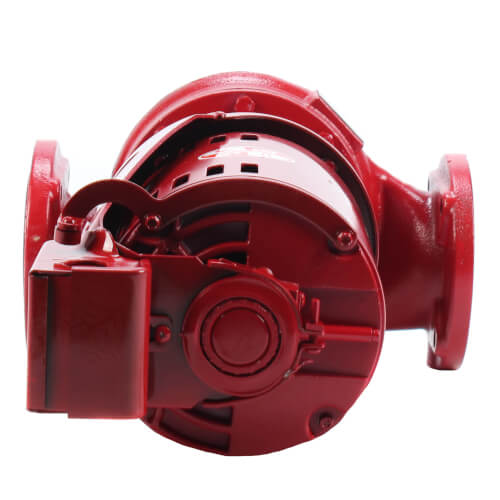

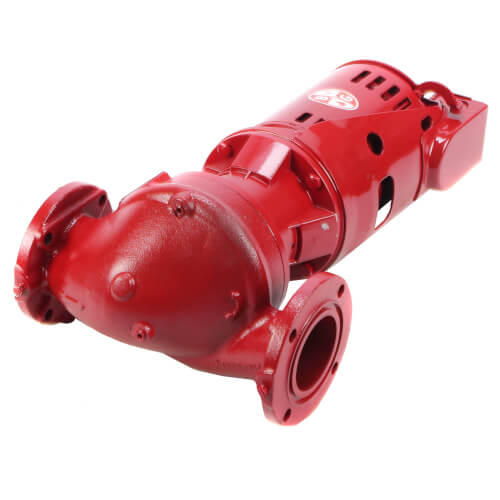

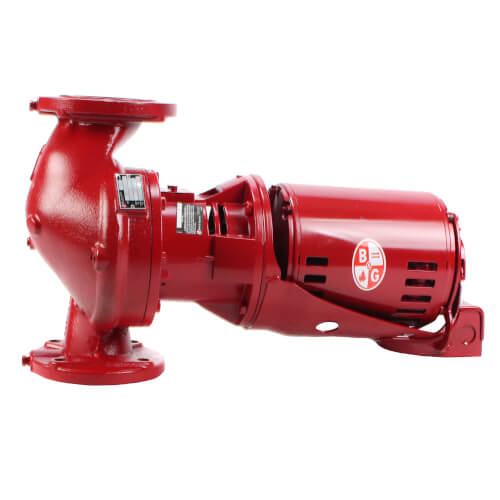

3/4 HP, PD37T Circulator Pump
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 74.22 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V, 208V, 460v, 208/230/460v
3/4 HP
Flanged x Flanged Connection
135 MAX GPM
125 MAX PSI
2.45 Amps
Description
–
Specifications
- Type: In-Line Oil Lubricated Circulator Pump
- Flange Size: 3.0 In.
- Horsepower: 3/4
- Voltage: 208/230/460
- Phase: 3
- Housing Material: Cast Iron
- Impeller Material: Brass
- Frequency: 60 Hz
- Motor Type: ODP
- RPM: 1750
- Maximum Working Pressure: 125 psi
- Flange Width: 12 in
- Length: 20 ¼ in
Specs
–
| Amperage: | 2.45 |
|---|---|
| Voltage: | 230V 208V 460v 208/230/460v |
| Material: | Cast Iron |
| Application: | Heating |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 3/4 |
| Connection Size: | 3" |
| Max Flow (GPM): | 135 |
| Flow Range (GPM): | 0-135 |
| Min Head (Ft): | 11 |
| Max Head (Ft): | 30 |
| Head Range (ft.): | 11-30 |
| Hertz: | 60 |
| Phase: | 3 |
| Max Temp (F): | 225°F |
| RPM: | 1750 |
| Connection Type: | Flanged x Flanged |
