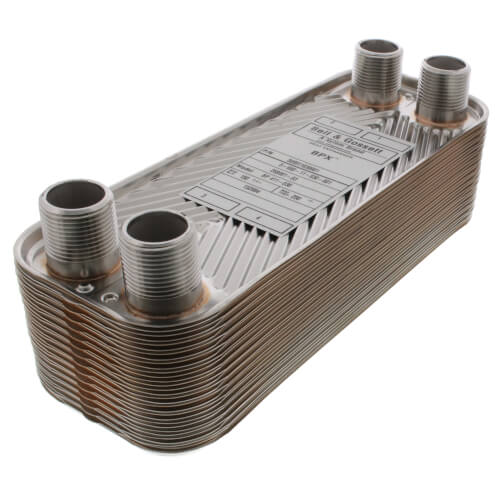

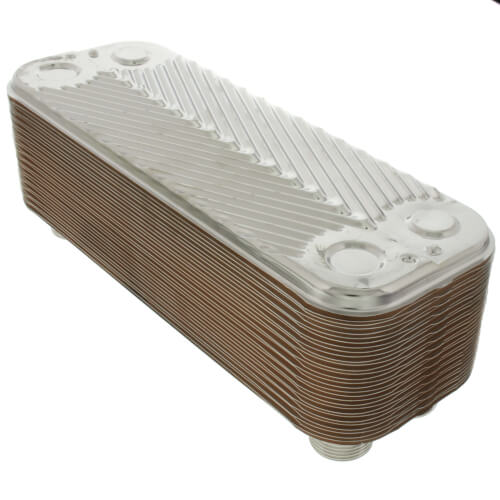

450,000 BTU/Hr Low Pressure BPX Brazed Plate Heat Exchanger
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$784.62 each
In Stock
Get 3 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
150 MAX PSI
Male Thread Type
3-2/5", 4-7/20" Depth
450000 Max BTUs
-310°F Min Temp
-310°F - 450°F
Description
–
B & G type Low Pressure BPX brazed plate heat exchangers offer the highest level of thermal efficiency and durability in a compact, low cost unit. These are ideal for applications that require 150 PSIG or less. The corrugated plate design provides very high heat transfer coefficients, resulting in a more compact design. The unit's stainless steel plates are vacuum brazed together to form a durable, integral piece.
Technical Specifications:
Applications:
Radiant Floor Heating:
Technical Specifications:
- BTU/Hr: 450,000
- Design Pressure: 150 PSI
- Design Temperature: -310°F min, 450°F max
- Number of Plates: 30
- Channel Plates: Stainless Steel ASTM 316L
- Brazing Material: Copper
- Weight (lbs): 7.5
Applications:
Radiant Floor Heating:
- Boiler Side: Water 180 Degree F Supply, 160 Degree F Return, Flow: 46.4 GPM, Pressure Drop: 6.1 PSI
- Radiant Floor Side: Water 100 Degree F Supply, 120 Degree F Return, Flow: 45.4 GPM, Pressure Drop: 5.8 PSI
Specs
–
| Number of Plates: | 30 |
|---|---|
| Application: | Heating |
| Max Pressure (PSI): | 150 |
| Type: | Radiant Heat |
| Thread Type: | Male |
| Brazing Material: | Copper |
| Depth (Inches): | 3-2/5" 4-7/20" |
| BTU Output: | 450000 |
| Cover Plate Material: | Stainless Steel |
| Min Temp (F): | -310°F |
| Temperature Range (F): | -310°F - 450°F |
| Thread Size: | 1" |
Contact
+
Happy Independence Day!
Our Customer Support will be opening late today in honor of Independence Day. We apologize for any inconvenience.
Call or text 888-757-4774
Special Hours
9am–7:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Number of Plates
Application
Type
Thread Type
Brazing Material
CURRENT ITEM
30
Heating
Radiant Heat
Male
Copper
You May Also Need
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Works surprising well
Both plumbers were sceptical. Using this to transfer the heat from a 460,000 btu outside wood burner to a closed in house system heating a double home. Heating 3800 sq ft of residence, 1000 sq ft basement, 900 sq ft garage and 2 dhw's. The plumbers didn't think that little box could do it. Generally seeing 10 to 15 degree drop supply to return at the boiler 50 ft of insulated pex away. Ordering and delivery were excellent also.
almostplumb
western PA
11 years ago
Verified Buyer
