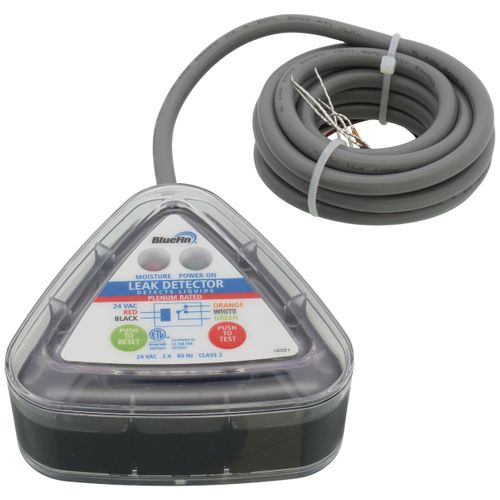

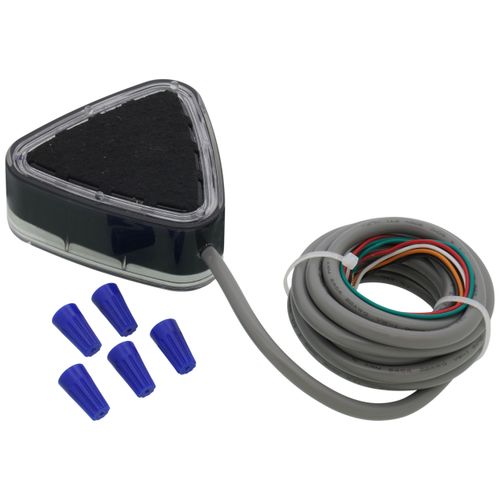

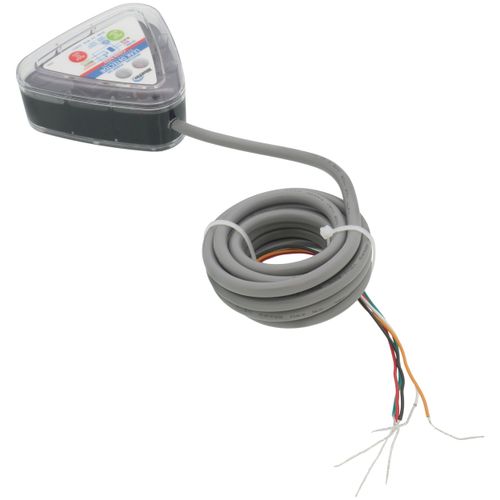

Leak Detector

The Bluefin Leak Detector detects moisture caused by an accumulation of air-conditioning condensate or due to a leak. Once detected, the

closed circuit controlling the system is immediately disconnected, preventing flooding and any property damage. Multiple Leak Detectors

may be connected to expand the coverage area if it is within the electrical limits of the power supply. The Leak Detector incorporates

isolated relay contacts for installations with electronic control boards where breaking one lead from the transformer is not possible. It also

includes an extra open circuit that may be used to operate an alarm device.

LEAK DETECTOR SPECIFICATIONS

LED INDICATORS:

• Green: Power On, Normal State
• Red: Moisture Detected


POWER REQUIREMENTS:

• 24 VAC, 60 Hz
• 2 A Max
• Class 2 Circuit

RELAY:

Isolated Contacts:

• Normally Closed - 5 Amps (max) @ 250V
• Normally Open - 5 Amps (max) @ 250V
