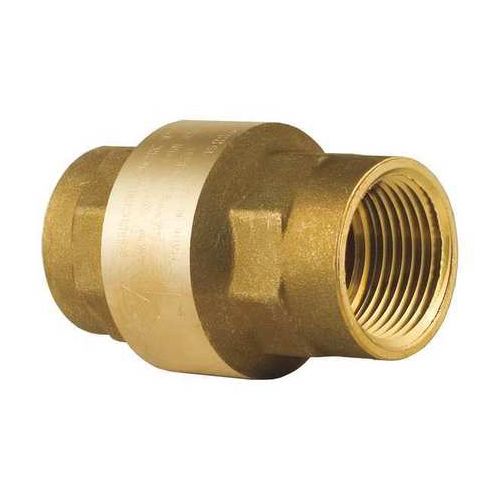

2" Threaded Spring Loaded Check Valve, Lead Free

Brand:
Bonomi
SKU:
100012LF-2
Rating:
(0)
Q&A:
(0)
2" Threaded Spring Loaded Check Valve, Lead Free
Magnifying glass
Hover image to zoom
$80.48 each
Available at Supplier
Available at Supplier
Get it Tue, Jul 21 - Thu, Jul 23
Size:
2"
2"
3"
4"
2"3"4"

MANUALS (1)

Submittal Sheet
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Standards Met
ANSI B1.20.1 Standards Met
Product Highlight: Thread Type
Female Thread Type
Product Highlight: Lead Free
Yes
Product Highlight: Connection Type
FNPT x FNPT Connection
Product Highlight: Material
Brass
Product Highlight: Size
2"

Description

–
2" High Capacity Lead Free Brass In-Line Check Valve with NBR Seats
    The check valve is made from a hot forged body for higher tensile strength, and for zero porosity. The spring is made from stainless steel, and have a cracking pressure of .5 psi. The disc is made from high temperature and abrasion resistant Polyetherimide. Further, the valve incorporates a patented disc to interior body design to prevent any potential side loading.
    The valve offers a bubble tight sealing under low as well as high pressure up to 400 WOG, with an elastomeric seat design, and the NPT threads conform to ANSI B1.20.1. All brass components is made from brass alloy CW510L/ASTM C28500 containing zero Bismuth, thus preventing stress cracking. The check valve has high flow capacity with minor restrictions, and approved for Lead Free service under NSF-372.

Features:
  • Pressure rating: 400 WOG
  • Soft seat for bubble tight shutoff, spring loaded for fast seating action
  • Low cracking pressure 1/2 psi
  • Flow pattern to minimize head loss
  • Perfect sealing both at high and low pressure wide temperature range 10°F to 210°F
  • High technology materials to ensure best resistance in any condition
  • Patented disc to prevent side loading
  • Not to be used for drinking water
  • ANSI B1.20.1 connections

Specs

–
Standards Met:

ANSI B1.20.1

Thread Type:

Female

Lead Free:

Yes

Connection Type:

FNPT x FNPT

Material:

Brass

Connection Method:

Threaded

Brass Alloy:

C28500

Size:

2"

Product Type:

Check Valve

Max Pressure (PSI):

400
