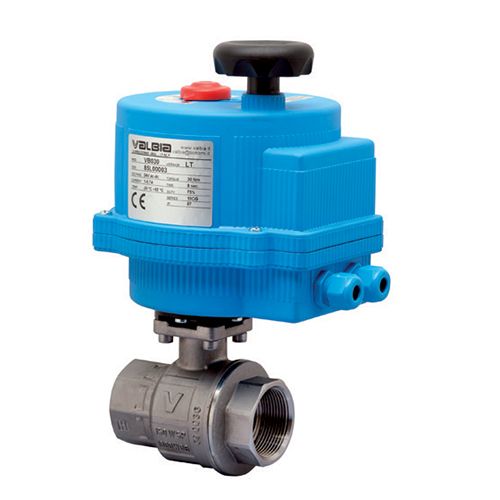

1-1/4" Full Port Stainless Steel Ball Valve with VB015-003 110VAC On/Off Electric Actuator

The 8E067 packed series is ideally suited for commercial and industrial applications, where space and reliability are at a premium. The 8E067 package includes a stainless steel 1000 psi full port ball valve along with a Technopolymer housing electric motor. The NEMA 4/4X motors incorporate dual voltages, 24AC/DC and 100-240VAC, and are standardly furnished with two extra limit switches, a heater and a thermostat, and a torque limiter for added protection. The NEMA 4/4X housing is resistant to dusty areas and where water may be sprayed.

Actuator Features:

• NEMA 4, 4X Housing - CSA, UL approved
• 12V/24V AC/DC and 100-240V AC Models Available
• ISO 5211, F03/F05 base with 11mm female drive
• VB015 -12/24V AC - 50% Duty Cycle
• VB030-VB110 - 12/24V DC and 100-240V AC - 75% Duty Cycle
• High-Strength, Impact Resistant IP67 Technopolymer Housing
• Temperature Range -4F to 131F
• PG11 Electrical Connection/Optional
• 1/2" Conduit

Valve Features:

• CF8M Stainless Steel
• ISO 5211 pad
• NSF 61, 372 certified
• Pressure rating to 1000 psi, 150 psi steam
• Temperature -4F to 366F
• Blow out proof stem
• P.T.F.E. seats with O-ring backing for low operating torque
• P.T.F.E. seals and Double O-ring stem seal design for extended cycle life
• 100% electronically tested in the open and closed position@80 Psi
• Thermal Relief Protection
