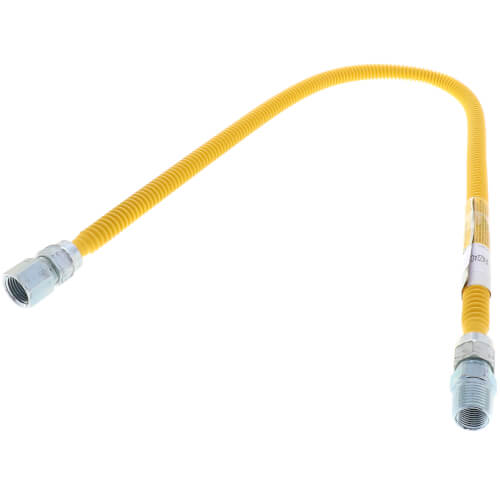

3/8" ID (1/2" OD) ProCoat Coated Stainless Steel Gas Connector w/ 1/2" FIP x 1/2" MIP Fittings (36" Length)
Hover image to zoom

3/8" ID (1/2" OD) ProCoat Coated Stainless Steel Gas Connector w/ 1/2" FIP x 1/2" MIP Fittings (36" Length)

SKU:
CSSD54-36
Rating:
(0)
Q&A:
(0)
3/8" ID (1/2" OD) ProCoat Coated Stainless Steel Gas Connector w/ 1/2" FIP x 1/2" MIP Fittings (36" Length)
Hover image to zoom
$30.55 each
In Stock
In Stock
Get 203 Thu, May 2
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Material icon
Stainless Steel
ID icon
3/8"
OD icon
1/2"
Length (Inches) icon
36" Length
Connection Type icon
FNPT x MNPT Connection
Size icon
1/2"

Description

ProCoat Coated Stainless Steel Gas Connector with Fittings. 1/2" FIP x 1/2" MIP, 3/8" FIP Tap, 36" length.

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
*Gas connectors may not be permitted for all uses in all locations. Consult with a professional installation expert or a plumber to ensure compliance with all applicable codes.

Features:
  • Corrugated stainless steel with corrosion resistant coating

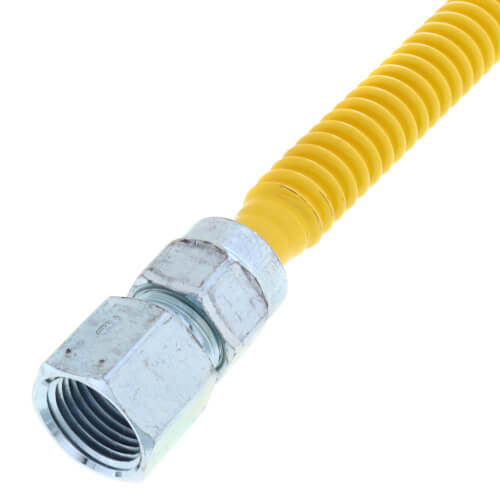

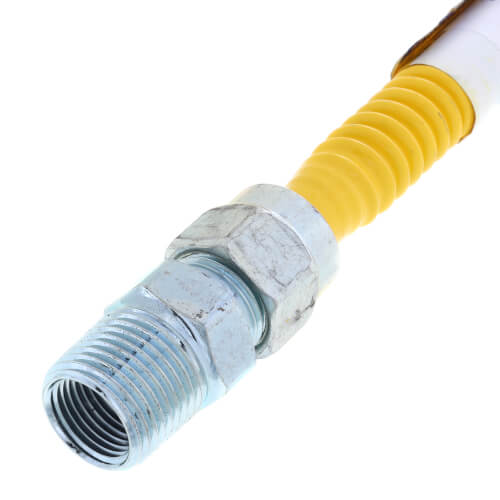

  • Steel fittings included: 1/2 in. FIP and 1/2 in. MIP (tapped 3/8 in. FIP)
  • Ideal for moderate demand appliances such as 4-burner gas ranges, cook-tops, dryers and water heaters
  • Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures
  • Smooth, burnished connector ends seal with less torque, making installation easier
  • High tensile strength stainless steel is less susceptible to work hardening
  • Yellow coating
  • For indoor and outdoor use
  • Temperature rating: -40°F to 150°F
  • Pressure rating: 1/2 psi maximum
  • Designed, machined and assembled in the USA

Specs

Length (Inches):

36"

NG Capacity (BTU):

71100

Type:

Corrugated

LP Capacity (BTU):

113760

Connection Type:

FNPT x MNPT

Size:

1/2"

ID:

3/8"

OD:

1/2"

Coating:

Yellow Coated

Material:

Stainless Steel
