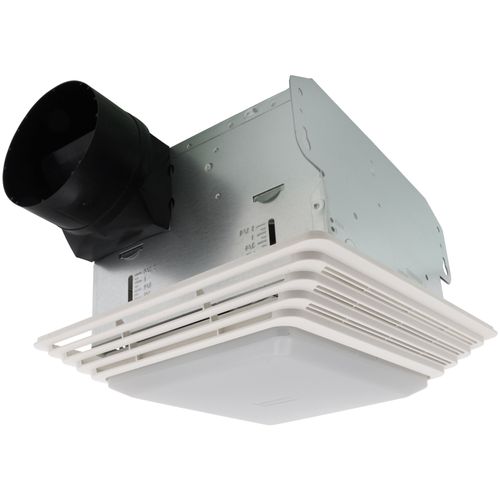

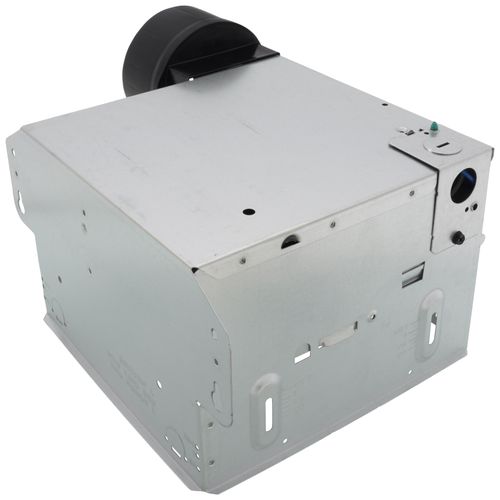

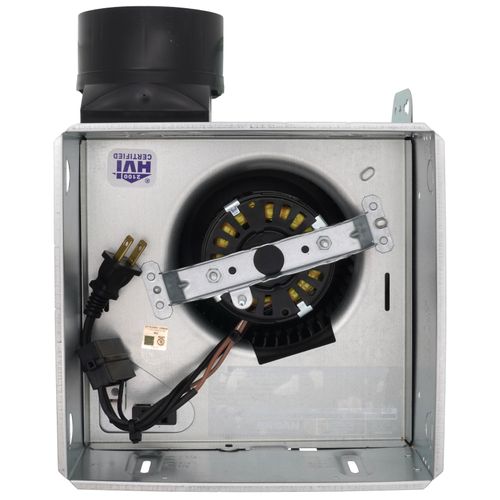

HD80L Heavy Duty Ventilation Fan w/ Light, 4" Round Duct (80 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
HD80L has been discontinued
Discontinued February 21, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Suggested Alternative:
1.5 Sones Roomside Series Ventilation Fan & Light, Energy Star (80 CFM)
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
80 CFM
4"
2.5 Sones
8" x 8-1/4" x 5-3/4"
11-1/8" x 10-5/8"
1 Year Warranty
Description
–
The Broan Heavy Duty fans/lights are designed for continuous operation - perfect for tough, light-commercial applications. Motors have heavy duty, long-life bearings, tamper proof construction and are totally enclosed for added protection against dirt and dust. Centrifugal blower wheels on all models provide quiet, efficient ventilation. Convenient mounting ears speed installation. Fan/light units have white molded 11-1/8" x 10-5/8" polymeric grille and shatter resistant light lens. Damper/duct connection fits 4" round duct. UL Listed for use over bathtubs or showers when connected to GFCI-protected branch circuit.
Features:
Features:
- 80 CFM, 2.5 Sones
- 4" Round Ducting
- Totally enclosed motor designed for continuous operation
- 100-watt incandescent light (bulb not included)
- Designer styled white polymeric grille with shatter resistant light diffusing lens
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit.
- Plug-in receptacles for fan and light
- Type IC (Insulation Contact)
- AMCA licensed for both air and sound
- Fits in 2"x6" construction
- Housing Dimensions: 8" x 8-1/4" x 5-3/4"
- Grille Size: 11-1/8" x 10-5/8"
Specs
–
| Product Type: | Ventilation Fan |
|---|---|
| Duct Size: | 4" |
| Air Flow Capacity (CFM): | 80 |
| Sone: | 2.5 |
| Amperage: | 1.5 |
| Lighting: | Incandescent |
| Voltage: | 120v |
| Fan Watts: | 50 |
| Nominal RPM: | 1380 |
| Housing Dimension: | 8" x 8-1/4" x 5-3/4" |
| Grille Dimension: | 11-1/8" x 10-5/8" |
| Grille Finish: | White |
| Warranty: | 1 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
7 Replacement Parts
Mounting Nut - #8-32
SKU: S99260425
Broan4" Damper/Duct Connector
SKU: S97014185
BroanSheet Metal Replacement Screw
SKU: S99170245
BroanRubber Motor Spacer
SKU: S99100399
BroanBlower Wheel, S97011315
SKU: S97011315
BroanReflector Assembly - Includes Light Socket
SKU: S97014212
Broan
