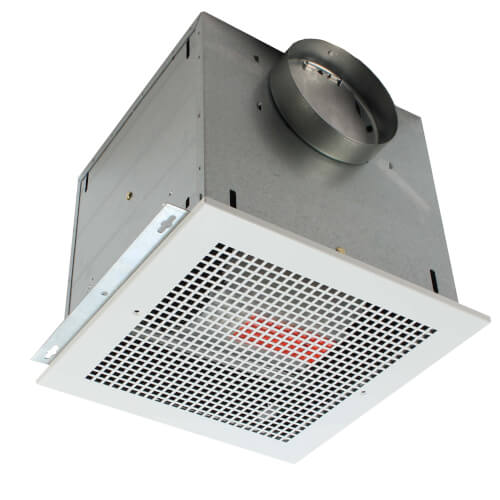

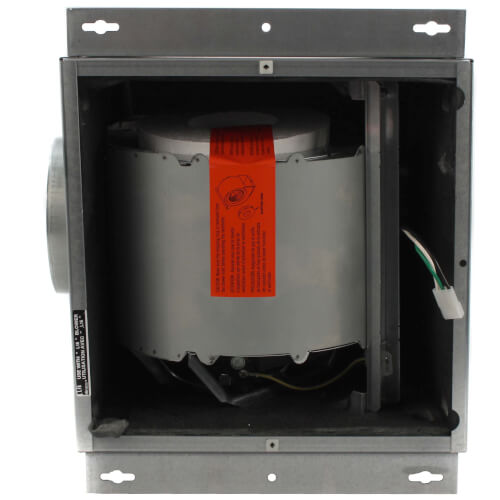

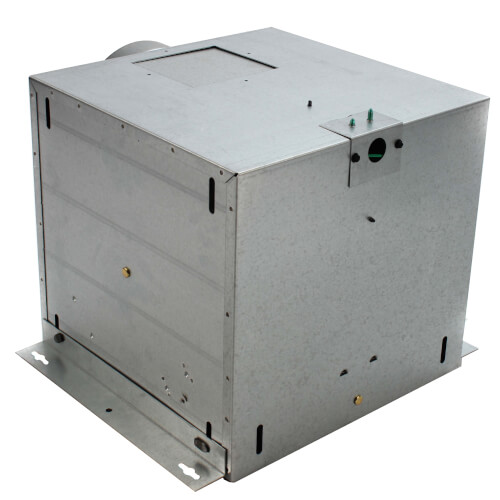

Main product image of L150MG Ceiling Mount Ventilation Fan w/ Metal Grille, 6" Round Duct (164 CFM)

Hover image to zoom

L150MG Ceiling Mount Ventilation Fan w/ Metal Grille, 6" Round Duct (164 CFM)

Name: L150MG Ceiling Mount Ventilation Fan w/ Metal Grille, 6" Round Duct (164 CFM)
Brand: Broan
SKU: L150MG
Price: 199.60 USD
Availability: OutOfStock

Brand:

Broan

SKU:

L150MG

Rating:

(0)

Q&A:

(0)

L150MG Ceiling Mount Ventilation Fan w/ Metal Grille, 6" Round Duct (164 CFM)

Hover image to zoom

L150MG has been discontinued

Discontinued February 9, 2023

This product was discontinued by the manufacturer.

MANUALS (2)

Replacement Parts

Product Highlights

–

161 CFM

1.4 Sones

12-1/4" x 12-1/4" x 11-3/4"

14" x 14"

1 Year Warranty

Description

–

Features:

164CFM, 1.4 Sones (AMCA), horizontal ducting
Can be ducted horizontally or vertically (162 CFM 1.6 Sone with vertical ducting).
In-line ducting available with separate adapter (In-Line model has removable access panel and no insulation)
6" round duct connector
Low profile, white metal grille
Single, impact-resistant centrifugal blower wheel
20 gauge galvanized steel housing
Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)
Housing Dimension: 12-1/4" x 12-1/4" x 11-3/4"
Grille Dimension: 14" x 14"

**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Specifications document for vertical ducting data.

Specs

–

Product Type:	Ceiling Mount Ventilation Fan w/ Round Duct
Duct Size:	6"
Voltage:	120v
Air Flow Capacity (CFM):	161
Hertz:	60
Sone:	1.4
Housing Dimension:	12-1/4" x 12-1/4" x 11-3/4"
Amperage:	1.3
Grille Dimension:	14" x 14"
Ducting:	Horizontal Vertical
Wattage:	100
Grille Finish:	White
Nominal RPM:	710
Warranty:	1 Year
Grille Material:	Metal
