CKV8H3WEC, 104,000 BTU Output V8H Water Boiler, no Burner (Oil)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
Lift Gate
Product Highlights
Description
Note: Product Title reflects this boiler's Net AHRI BTU Rating
Knockdown V8H Boiler for High with Circulator Pump with High Altitude Configuration.
This item does not come with a burner. This must be purchased separately.

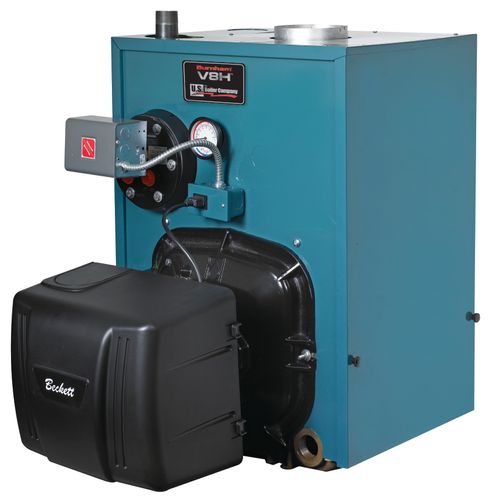

The V8H oil-fired boiler is designed for quiet operation while providing years of reliable and efficient service. As always, the jacket design and burner enclosure give the V8 a modern, finished appearance, and it is available in multiple heating capacities that can be configured for water or steam - with or without a tankless hot water heating coil. As one of the most versatile boilers available, the V8 is intended for installation in a wide variety of home styles and sizes.
Features:
- Cast iron sectional design
- Optional tankless water heater
- Durable push-nipple connections between boiler sections - will not deteriorate when exposed to petroleum-based antifreeze
- Easy to clean and service - side and top cleanouts provide complete access to flueways
- Full swing-away burner door
- Lifetime limited warranty
Intelligent Oil Boiler Control
- Standard on V8H water boilers
- Combines aquastat and relay functions into a single module
- Two customizable integrated switching relays for easy addition of additional heating zone or indirect water heater
- Energy saving "thermal purge", which works by circulating residual warm water (140° or above) in the heating system before firing the boiler
- LED display for boiler status and trouble codes
- Extensively tested and proven in thousands of existing installations
Standard Equipment
- Cast iron section assembly: Wet base construction, quick release top outlet canopy, removable right side flue plates
- Intelligent Oil Boiler Control System (water only)
- Cast iron swing door
- Flange mounted retention oil burner
- Insulated deluxe jacket with lift-off side panel
- Boiler drain valve
- Safety relief valve
- Pressure temperature gauge
- High limit & relay
- Draft regulator
- Gauge glass set (steam only)
- Steam gauge (steam only)
- Probe-type LWCO (steam only)
- 8 and 9 section models always shipped as individually crated knock-downs
Specs
| DOE Rating: | 120000 |
|---|---|
| System Type: | Hydronic (Water) |
| Depth (Inches): | 17-1/8" |
| IBR Rating: | 104000 |
| Width (Inches): | 24" |
| Efficiency: | 86% |
| BTU Input: | 140000 |
| Fuel Type: | Oil |
| BTU Output: | 104000 |
| Height (Inches): | 32.25" |
| Includes: | Tankless Heater |
| Burner Brand: | None |
| Application: | Heating |
| Vent Type: | Atmospheric |
| Features: | High Altitude |
| Warranty: | 1 Year (Boiler Parts), 25 Year Limited (Heat Exchanger) |
