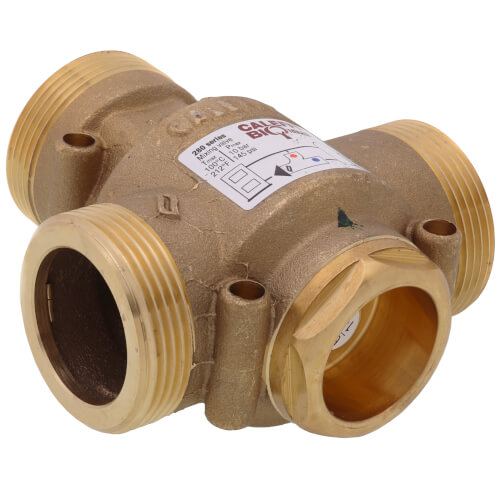

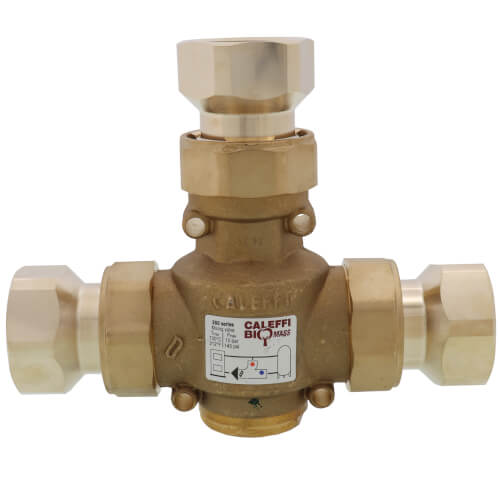

1-1/4" Female NPT ThermoProtec Thermostatic Mixing Valve (140-Degrees F Tset)
Hover image to zoom

1-1/4" Female NPT ThermoProtec Thermostatic Mixing Valve (140-Degrees F Tset)

Brand:
Caleffi
SKU:
280176A
Rating:
(0)
Q&A:
(0)
1-1/4" Female NPT ThermoProtec Thermostatic Mixing Valve (140-Degrees F Tset)
Hover image to zoom
$258.34 each
In Stock
In Stock
Get 18 Wed, Apr 17
More Available
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Connection Type icon
FNPT x FNPT Connection
Size icon
1-1/4"
Flow Capacity (Cv) icon
10 Cv
Max Temp (F) icon
140°F Max Temp
Max Pressure (PSI) icon
150 PSI
Material icon
Brass

Description

The ThermoProtec boiler protection high-flow thermostatic mixing valve is used in hydronic heating systems with non-condensing boilers, including solid fuel, biomass, gas, LP or oil-fired. It can be installed with steel, cast iron and copper tube style boilers, automatically controlling the return water temperature, preventing condensation of the water vapor contained in the flue gas.

The 280 series ThermoProtec valve mixes bypass flow from the boiler with return flow from the system, sending a fixed temperature flow to the boiler which protects against corrosion from condensation occurring when a minimum flue gas temperature is not otherwise maintained.

Changeable thermostatic sensor cartridges modifies the valve temperature setting. The thermostatic sensor cartridge can easily be removed for maintenance or to change the valve set temperature, with out removing the valve body from the piping.

These items are designed for use in closed hydronic systems. Do not use in plumbing applications. These items do not meet the low-lead plumbing standards of U.S. and Canada.

Note: Do not use this item for any installation or repair of potable water applications. This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.

Specs

Size:

1-1/4"

Connection Method:

Threaded

Max Temp (F):

140°F

Max Pressure (PSI):

150

Flow Capacity (Cv):

10

Connection Type:

FNPT x FNPT

Material:

Brass

Body Pattern:

3-Way

Standards Met:

ASSE 1017

Application:

Point of Source
