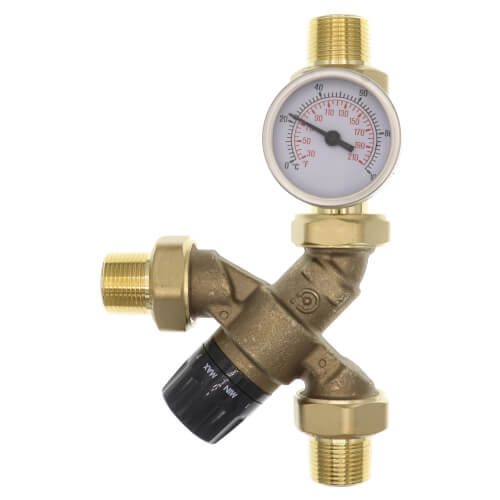

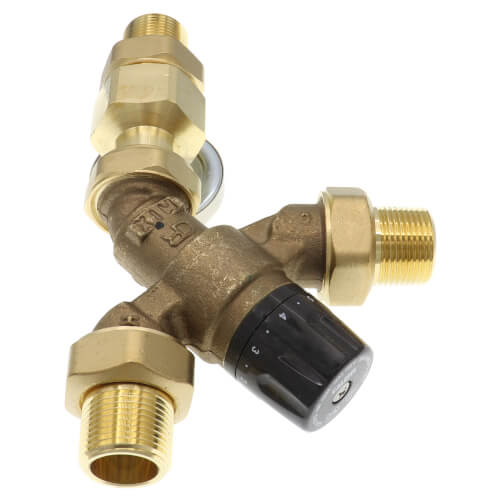

3/4" NPT AngleMix Thermostatic Mixing Valve w/ Temperature Gauge
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$174.02 each
In Stock
Get 8 Tue, Jul 7
Order by today, receive Tuesday
Size:
3/4"
Connection Type:
MNPT x MNPT
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT Connection
3/4"
2 Cv
Brass
3-Way
Description
–
The Caleffi AngleMix 520 series thermostatic mixing valve is used in systems producing domestic hot water and easily mounts to the top of water heaters. The mixed temperature outlet is inline with the hot water inlet, facilitating trouble-free connection and reducing space required for installation. The AngleMix maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water.
The mixing valve also features a thermal shut-off function that operates in the event of a cold water supply failure at the inlet. Also available as body only, for a wide variety of separately-ordered end connections, the angle style body design offers improved fluid dynamics for better performance and reduces installation labor and materials, eliminating a piping elbow in typical installations.
Product FeaturesAdjustment temp range: 95° - 150°F
Max working pressure (static): 150 psi
Max working pressure (dynamic): 75 psi
Max inlet temp: 195°F
Gauge scale: 30° - 210°F
Min flow for optimum performance: 0.5 gpm (0 gpm with recirculation)
The mixing valve also features a thermal shut-off function that operates in the event of a cold water supply failure at the inlet. Also available as body only, for a wide variety of separately-ordered end connections, the angle style body design offers improved fluid dynamics for better performance and reduces installation labor and materials, eliminating a piping elbow in typical installations.
Product Features
Specs
–
| Size: | 3/4" |
|---|---|
| Connection Method: | Threaded |
| Connection Type: | MNPT x MNPT |
| Type: | Angle |
| Flow Capacity (Cv): | 2 |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Includes: | Gauge |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.75 out of 4 reviews
100% would recommend this product
5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Easy install and operation
Replaced and old Honeywell 3-way thermostatic mixing valve on my indirect domestic water tank with this one. Nice design. Straight run HW outlet into valve and out of the outlet. Used a steel braided howls to connect to the CW. Provided with in line thermometer. The knob is easily accessed to adjust the outlet temperature.
Crashwhiplash
Colorado
3 months ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Look carefully
Great product however you must be sure to buy the correct one. The A has no check valves and the AC has the checks
Cocnbals
NY
7 months ago
Verified Buyer
Was this review helpful to you?
was good, now improved
Works well. Even though model number didn't change, the latest one switched from those awful paperboard washers to o-rings. Thanks!
sribe
devner, co
2 years ago
Verified Buyer
Was this review helpful to you?
Works great and easy to install
This mixing valve was easy to install and works great. I have an outdoor wood boiler with a heat exchanger that heats the water feeding my electric hot water heater to 180° F, so a mixing valve is a must.
The included thermometer is not super accurate, but if calibrated for it's desired setpoint, it is ok.
BAM
Conneautville, PA
3 years ago
Verified Buyer
Was this review helpful to you?
