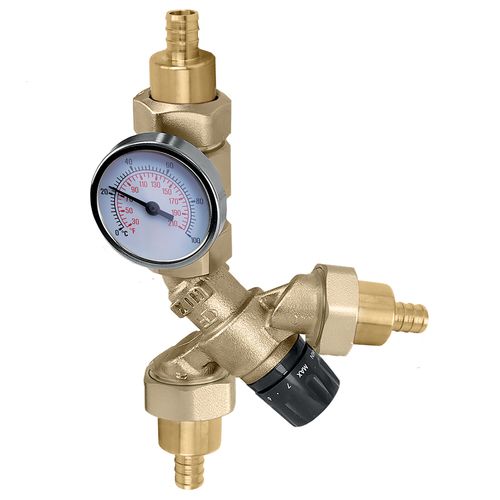

3/4" PEX Expansion Union AngleMix Thermostatic Mixing Valve w/ Check, Gauge

The Caleffi AngleMix and AngleMix+ 520 series thermostatic mixing valves are used in systems producing domestic hot water and easily mount to the top of water heaters. The mixed temperature outlet is inline with the hot water inlet, facilitating trouble-free connection and reducing space required for installation. These thermostatic mixing valves maintain the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The mixing valve closes both inlet ports tight, eliminating temperature creep in recirculation loops. The AngleMix and AngleMix+ can also be used for temperature control in hydronic heating system applications. Also available as body only, for a wide variety of separately-ordered end connections, the angle style body design offers improved fluid dynamics for better performance and reduces installation labor and materials, eliminating a piping elbow in typical installations.

Product Features:

• Maximum static operating pressure: 150 psi
• Maximum dynamic operating pressure: 75 psi
• Adjustment temperature range: 95 - 150 °F
• Maximum inlet temperature: 195 °F
• Flow rate working range: 0.5 - 9 gpm
• Material: DZR low lead brass
