$63.45 each
In Stock
Get 74 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 656104
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Description
–
6564 Thermo-electric actuator with low current draw
The thermo-electric actuator, mounted to a zone valve or manifold, allows automatic shut-off of the medium under the control of a room thermostat or electrical switch. The 6564 series features low current draw, ideal during the start-up phase. It is equipped with a valve opening/closing indicator, and a quickcoupling system with a retainer clip adapter for easy installation. It features NEMA 5 protection allowing upside-down installation.
Features
The thermo-electric actuator, mounted to a zone valve or manifold, allows automatic shut-off of the medium under the control of a room thermostat or electrical switch. The 6564 series features low current draw, ideal during the start-up phase. It is equipped with a valve opening/closing indicator, and a quickcoupling system with a retainer clip adapter for easy installation. It features NEMA 5 protection allowing upside-down installation.
Features
- Power supply: 24 V AC/DC
- Initial current draw: 250 mA
- Holding current: 125 mA
- Power consumption: 3 W
- Normally closed
- 31.5" wire lead connection
Specs
–
| Voltage: | 24V |
|---|---|
| Power Consumption: | 3W |
| Type: | Actuator |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
3.83 out of 6 reviews
67% would recommend this product
5 star
67%
4 star
0%
3 star
0%
2 star
17%
1 star
17%
Customer Images
Showing 1-6 of 6 reviews
Yes
Was an easy install and works good.
Worm
WI
5 months ago
Verified Buyer
Was this review helpful to you?
thermoelectric actuator
Great service. Very quick shipping. Item was exactly as described and was a good replacement for older actuator.
gary
Mpntana
8 months ago
Verified Buyer
Was this review helpful to you?
Expect to replace in 5 years
They are great when they work. Not so great when they fail due to an internal design flaw. Do not expect them to last 5 years.
G.Diaz
Pittsburgh
4 years ago
Was this review helpful to you?
Only if I have too

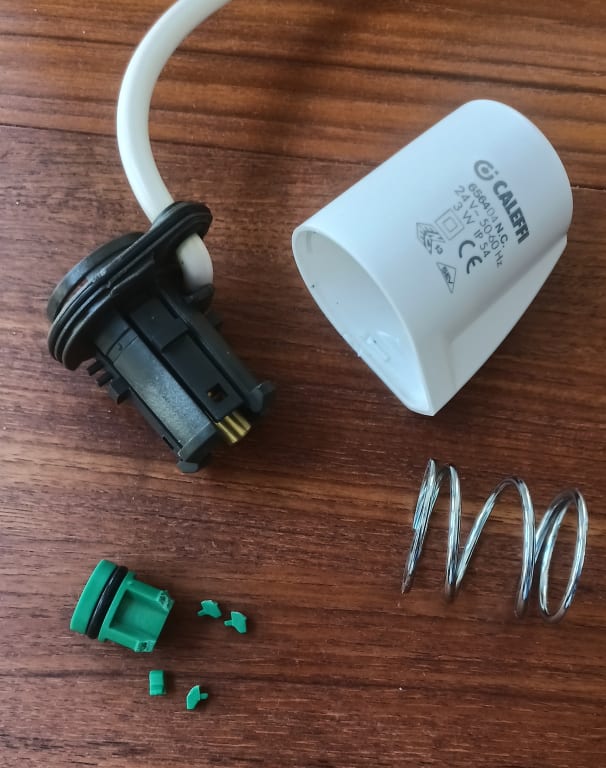

I use these in my 6 zone Caleffi manifold. In 5 years Ive had 3 of the 5 fail internally. The small plastic ears that pull the actuator up, all failed, turning into a useless maraca. In the end the actuator shows green, indicating its open and its actually closed. It seems to be a clear design flaw. It also seems to be acceptable failure rate to the mfg and distributor. I guess it was more acceptable when you could get them for half the current price. I would not recommend these..
G. Diaz
Pittsburgh
4 years ago
Was this review helpful to you?
Replacement product; Easy to find and install
Easy to find replacement actuators for my underfloor heating system. I feel like I paid a fair price for them. Shipping was fast and there was plenty of "how to" content on the website to help me make sure I installed them correctly.
Erik DIY
Pasadena, CA
6 years ago
Verified Buyer
Was this review helpful to you?
Works as expected
Shipped quickly, installed easily and works fine. Even better than the original actuators due to the green indicator line to tell when valve is open. Kudos to SupplyHouse customer support too because one of the units came without the threaded snap ring in the box and they replaced it quickly.
eknight
Windsor, VT
10 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Can this be installed in an upside down position in a situation where the Pex radiant loops are coming down from above and the supply and return manifold rails are mounted horizontally?
Asked by Mojo 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe actuator would function upside down, however the 656304 would be a better choice as it is water tight and would be protected from any possible leaks or drips.
Was this review helpful to you?
Q: What is the difference between this model and the one with Auxiliary Micro Switch?
Asked by Alex 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe auxiliary switch has an additional two wires to be used as an end switch, typically turning on the boiler or a circulator pump.
Was this review helpful to you?
