Product Highlights
–
1/2"
663 Caleffi, 668S1 series
Threaded Connection
Description
–

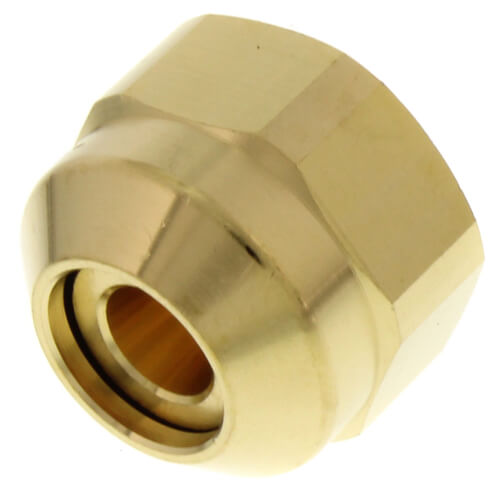

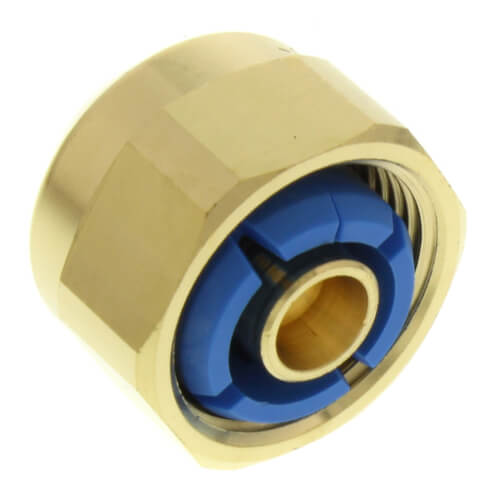

Fitting with self-adjusting diameter for PEX and PEX-AL-PEX pipes series 680
The self-adjusting fitting for PEX and PEX-AL-PEX pipes is a mechanical device that allows the pipes, the radiant panel
system circuits and the manifolds to be connected easily and securely. This versatile fitting has been specifically designed
to adapt to the varying pipe diameter tolerances.

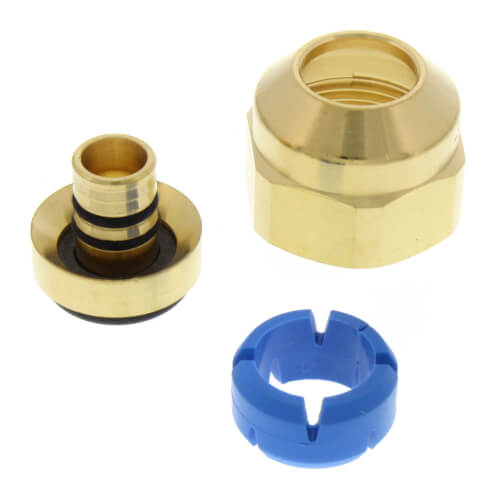

Self-adjusting fitting for PEX and pex-al-pex pipes with internal Venturi effect profile to limit pressure losses. 3/4" F connection. Brass nut and adapter, EPDM seals, EPDM insulation ring, PA olive coupling. Medium: water and glycol solutions. Maximum percentage of glycol: 50%. Maximum working pressure: 150 psi (10 bar). Temperature range: 41 to 180°F (5 to 82°C) (PEX); 41 to 167°F (5 to 75°C) with tubing rated 200°F (93°C); 41 to 122°F (50°C) with tubing rate <200°F (93°C) (PEX-AL-PEX).
Self-adjusting fitting for PEX and pex-al-pex pipes with internal Venturi effect profile to limit pressure losses. 3/4" F connection. Brass nut and adapter, EPDM seals, EPDM insulation ring, PA olive coupling. Medium: water and glycol solutions. Maximum percentage of glycol: 50%. Maximum working pressure: 150 psi (10 bar). Temperature range: 41 to 180°F (5 to 82°C) (PEX); 41 to 167°F (5 to 75°C) with tubing rated 200°F (93°C); 41 to 122°F (50°C) with tubing rate <200°F (93°C) (PEX-AL-PEX).
Specs
–
| Used With: | 663 Caleffi 668S1 series |
|---|---|
| Connection Type: | Threaded |
| Type: | Fitting |
| Size: | 1/2" |
| PEX Size: | 1/2" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4 out of 1 review
100% would recommend this product
5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Wish these were included with the manifold purchase
Product worked well. Just wish that when I ordered 16 of them, I would have gotten all 16. Not just making an assumption for the parts picker that the "box of 10" actually had 10 in it, and not just 8.
JRK
Brighton, IL
2 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
6 Questions6 Questions
Q: Is this fitting compatible with 1/2" Viega FostaPEX tubing?
Asked by CSW47 7 years ago
Add your answer
Verified Reply- Supplyhouse StaffThat fitting appears to be compatible with standard pex only, not Pex-al-pex. That fitting is also meant to go to Caleffi radiant manifolds only.
Was this review helpful to you?
Q: Assuming this be compatible with Bulldog brand Oxygen barrier PEX B type? Says it's versatile but thought I'd ask. Thanks
Asked by Shaun 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes it is
Was this review helpful to you?
Q: ARE THESE THE CORRECT FITTINGS TO USE ON A CALEFFI 172 RADIANT MIXING MANIFOLD
Asked by I DONT HAVE A NICKNAME 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, they will work.
Was this review helpful to you?
Q: Are these connectors compatible with hePex tubing??
Asked by JJ 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes
Was this review helpful to you?
Q: do you use thread tape when installing?
Asked by pat 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffnope
Was this review helpful to you?
Q: Is the 3/4'' connector side threaded?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it is not a standard 3/4 thread, it is only meant to connect to the Caleffi manifolds.
