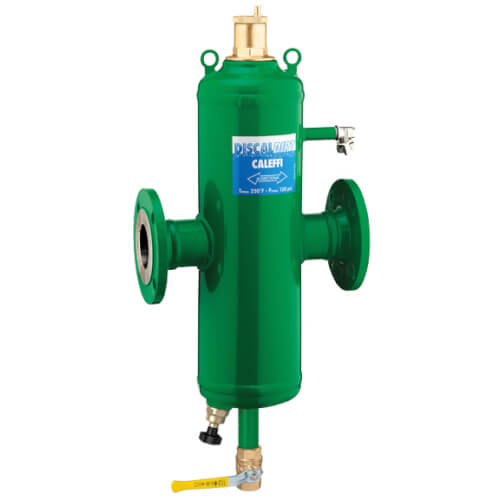

2-1/2" NA546M Series DISCALDIRT Air & Dirt Separator w/ Magnet

The Caleffi DISCALDIRTMAG® magnetic air and dirt separator incorporates three important functions for hydronic systems: air separation, dirt separation and ferrous impurity separation. An internal screen element facilitates the coalescing and capture of micro-bubbles to facilitate high performance automatic air removal, while concurrently causing the capture of non-ferrous debris particles down to 5 micron size. A powerful magnetic field induced by rare-earth neodymium magnets facilitates the capture of ferrous impurities such as iron oxide down to microscopic size thus delivering 2-1/2 times the ferrous impurity removal performance of standard air and dirt separators.

Features

• Air and dirt separator with magnets.
• Epoxy resin coated steel body.
• Stainless steel float guide pin and linkage.
• Stainless steel mesh internal element.
• ANSI 150 flange connections.
