MANUALS (3)
Lift Gate
–
This product weighs 85.1 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Flanged x Flanged Connection
Steel, Brass
2"
150 MAX PSI
220°F Max Temp
Description
–
Note: This no longer comes with insulation shells

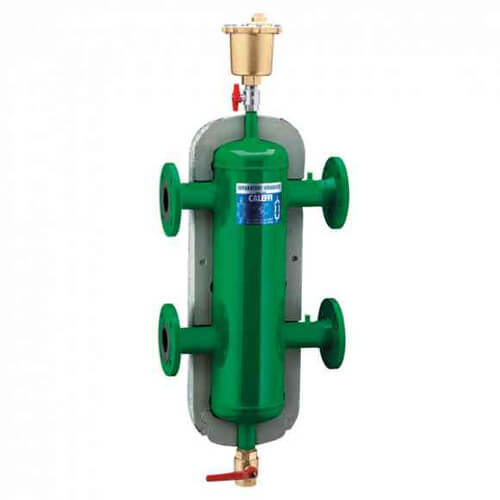

The Caleffi 548 and NA548 series hydraulic separator creates a zone with a low pressure loss, which enables primary and secondary circuits connected to it to be hydraulically independent of each other; the flow in one circuit does not create a flow into the other. This device consists of several different functional components, each of which meets specific requirements, typical of the circuits used in heating and air-conditioning systems.
Includes:
Features:
The Caleffi 548 and NA548 series hydraulic separator creates a zone with a low pressure loss, which enables primary and secondary circuits connected to it to be hydraulically independent of each other; the flow in one circuit does not create a flow into the other. This device consists of several different functional components, each of which meets specific requirements, typical of the circuits used in heating and air-conditioning systems.
Includes:
- Automatic air vent (Code 501502A)
- Shut-off valve (Code NA39589)
- Drain valve (Code NA39588)
Features:
- ANSI 150 flange connections
- Max working pressure: 150 psi
- Vessel working temp range: 32 - 220F
- Vessel working temp range without insulation: 32 - 270F
Specs
–
| Product Type: | Hydraulic Separator |
|---|---|
| Max Temp (F): | 220°F |
| Max Pressure (PSI): | 150 |
| Size: | 2" |
| Material: | Steel Brass |
| Connection Method: | Flanged |
| Connection Type: | Flanged x Flanged |
