Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Flanged x Flanged Connection
Brass, Steel
3"
150 MAX PSI
230°F Max Temp
Description
–
Application
The hydronic separator creates a zone with a low pressure loss, which enables the primary and secondary circuits connected to it to be hydraulically independent of each other; the flow in one circuit does not create a flow in the other.
Typical Specification

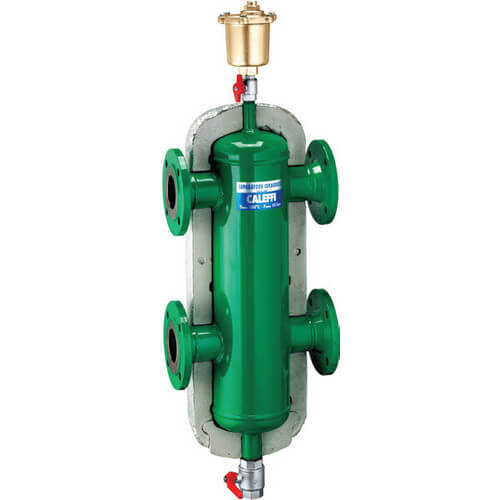

Furnish and install on the plans and described herein, a Caleffi Hydro Separator as manufactured by Caleffi. Each separator must be designed with an epoxy resin painted steel body, a chrome plated brass blowdown drain valve with hose connection and automatic brass air vent. The separator design must include sweat or NPT union fittings. Each separator shall be Caleffi model NA548 or approved equal. (See product instructions for specific installation information.)
The hydronic separator creates a zone with a low pressure loss, which enables the primary and secondary circuits connected to it to be hydraulically independent of each other; the flow in one circuit does not create a flow in the other.
Typical Specification
Furnish and install on the plans and described herein, a Caleffi Hydro Separator as manufactured by Caleffi. Each separator must be designed with an epoxy resin painted steel body, a chrome plated brass blowdown drain valve with hose connection and automatic brass air vent. The separator design must include sweat or NPT union fittings. Each separator shall be Caleffi model NA548 or approved equal. (See product instructions for specific installation information.)
Specs
–
| Connection Method: | Flanged |
|---|---|
| Product Type: | Hydraulic Separator |
| Connection Type: | Flanged x Flanged |
| Size: | 3" |
| Max Pressure (PSI): | 150 |
| Max Temp (F): | 230°F |
| Material: | Brass Steel |
