3/4" Press 2-Way Zone Valve w/ Aux. Switch 7.5 Cv (24V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$171.12 each
In Stock
Get 64 Wed, Jul 30
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Straight-Through, 2-Way
Press Connection
7.5 Cv
3/4"
24V
Normally Closed
Description
–

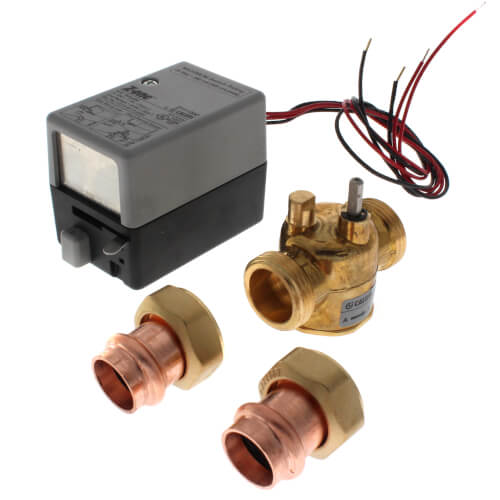

Includes: 2 (NA16265) 3/4" press fittings.
- 18" wire lead connection
- A snap on actuator allows for fast installation and easy replacement with a convenient in-line push button.
- A gear ratio of 21:1 in the actuator increases torque for high close-off pressure and increases closing time to reduce water hammer.
- Compact design provides quick and easy installation, the Z-one valve fits perfectly inside baseboards and fan coils. Available with choice of NPT, sweat and press fittings for ease of installation and maintenance.
- Hermetically sealed end switch in 24V actuators requires no minimum current load allowing multiple end switches connected in parallel to zoning panel.
- Suitable for all types of systems - made with materials compatible with chilled or hot water up to 240°F, 15 psi steam, and open or closed systems.
- Low power consumption allows up to five valves per 40 VA transformer.
Specs
–
| Size: | 3/4" |
|---|---|
| Position: | Normally Closed |
| Voltage: | 24V |
| Flow Capacity (Cv): | 7.5 |
| Connection Type: | Press |
| Max Temp (F): | 240°F |
| Body Pattern: | Straight-Through 2-Way |
| End Switch: | Yes |
| Includes: | NA16265 |
| Max Close-Off PSI: | 20 psi |
