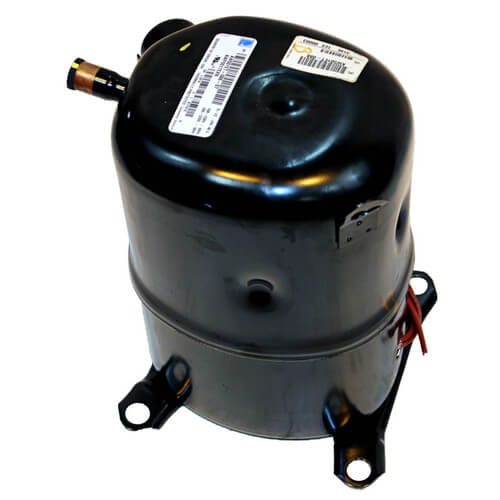

208/230 V Single Phase Reciprocating or Hermetic Compressor, 24,400 BTU
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
P031-2429 has been discontinued
Discontinued January 26, 2022
This product has been discontinued.
Product Highlights
–
R-22
24400 Max BTUs
208/230V
Description
–
Note: Image may not be exact representation of item.
Specifications:
Specifications:
- Weight: 63.55 Pounds (lbs)
- Length: 9.9 Inches (In)
- Width: 8.9 Inches (In)
- Height: 12.9 Inches (In)
- Country: of Origin: USA
- Hazardous Material: No
- EPA Cert Required: No
- Amps: 10
- Application: AC/HP
- Brand: Tecumseh
- BTU Output: 24400
- Comments/Notes: RCD Parts
- Cycle/Hertz: 60
- Efficiency: 10.6
- Evaporating Temperature: 45°F (7.2°C)t
- High Locked Rotor Amps: 60
- ISO Code: US
- Liquid Line Size: 3/8"
- Locked Rotor Amps: 60
- Motor Resistance Ohms-Main: 0.974 Ohm
- Motor Resistance Ohms-Start: 2.44 Ohms
- Motor Type: PSC
- Oil Charge Initial: 30
- Oil Charge Recharge: 30
- Oil Type: 3GS MINERAL
- Phase: Single
- Rated Load Amps: 9.95
- Refrigerant: R-22
- Refrigerant Capacity: 24400 Btu/h
- Return Gas Temperature: 65°F (18.3°C)
- Run Capacitor MFD µF: 35/440
- Suction Line Size: 3/4"
- Type: Reciprocating or Hermetic
- Voltage: 208-230 VAC
- Watts: 2300
Specs
–
| Refrigerant Type: | R-22 |
|---|---|
| BTU Output: | 24400 |
| Hertz: | 60 |
| Phase: | 1 |
| Voltage: | 208/230V |
