5OCA3056 has been discontinued
Discontinued July 20, 2020
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
575v
1140 RPM
Reversible
1/2 HP
Round Belly Band
1 Amps
Description
–

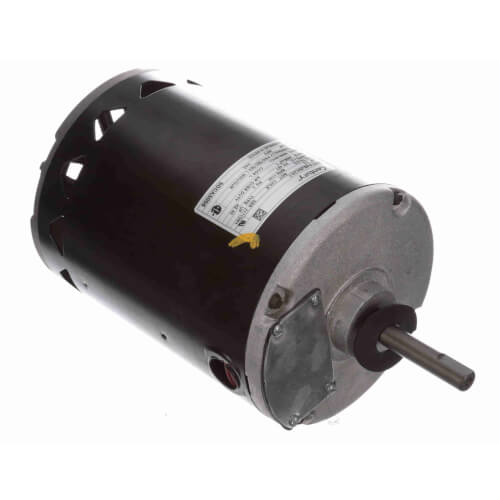

5-5/8" Carrier/BDP OEM Motor (575V, 1140 RPM, 1/2 HP)
Note: Image may not be actual representation of item.
Note: Image may not be actual representation of item.
Specs
–
| Type: | 3 Phase |
|---|---|
| OEM: | Carrier/BDP |
| Horse Power: | 1/2 |
| Voltage: | 575v |
| Duty: | Air Over |
| Bearings: | Ball |
| Mount: | Round Belly Band |
| Poles: | 6 |
| RPM: | 1140 |
| Rotation: | Reversible |
| Phase: | 3 |
| Speeds: | 1 |
| Enclosure Type: | Open Air Over |
| Frame: | 48Y |
| Amperage: | 1 |
| Motor: | 3-Phase |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 140°F |
| Motor Orientation: | Horizontal |
