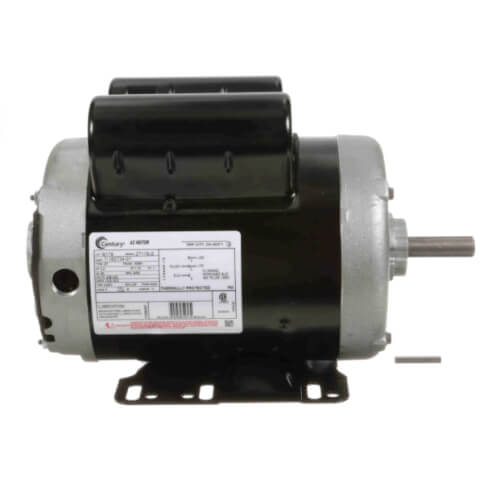

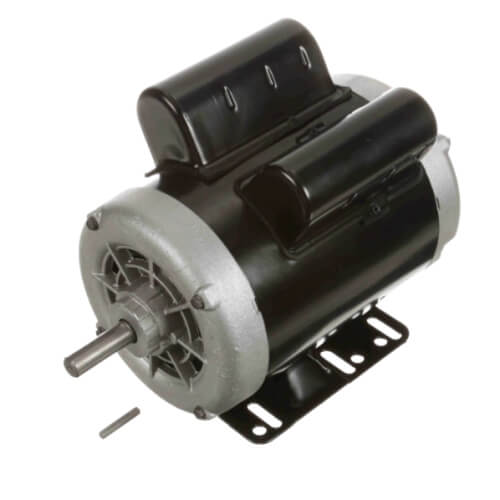

Capacitor Start ODP Rigid Base Motor, 3 HP, 3450 RPM (208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$973.14 each
In Stock
Get 4 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
3450 RPM
RCCW
3 HP
Rigid Base
6-1/2" Diameter
Description
–
Capacitor Start ODP Rigid Base Motor, 3 HP, 3450 RPM (208-230V)
Applications: Compressors, pumps, conveyors , milking machines, blowers & fans
Features:
Note: Image may not be actual representation of item .
Applications: Compressors, pumps, conveyors , milking machines, blowers & fans
Features:
- Capacitor Start
- Rigid Base
- High Start Torque
- 40C Ambient
- Open Dripproof
- 60 Hz
- Reversible
Note: Image may not be actual representation of item .
Specs
–
| Product Type: | Motor |
|---|---|
| Type: | Capacitor Start Single or Dual Voltage Capacitor Run |
| Frame: | 56H |
| Horse Power: | 3 |
| Voltage: | 208/230V |
| Bearings: | Ball |
| Duty: | Continuous |
| Speeds: | 1 |
| Phase: | 1 |
| Rotation: | RCCW |
| Mount: | Rigid Base |
| Hertz: | 60 |
| Insulation Class: | B |
| RPM: | 3450 |
| Diameter (Inches): | 6-1/2" |
| Overload Protection: | Thermally |
| Enclosure Type: | Drip Proof |
| Poles: | 2 |
| Max Ambient Temp (°F): | 104°F |
