Description

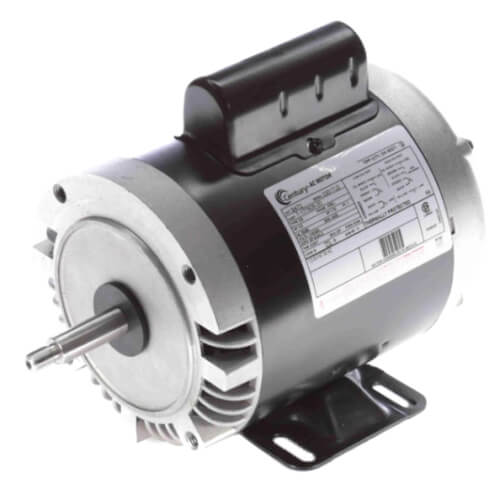

Capacitor Start NEMA "C" Face Rigid Base Motor, 1/3 HP, 3450 RPM (115/230V)

Features:
  • Ball Bearing
  • 40C Ambient
  • Class B Insulation
  • 60 Hz
  • CW Non-Reversible

Note: Image may not be actual representation of item .
Read more
Manuals (1)
Specs
Product Type:
Motor
Frame:
56J
Type:
Single or Dual Voltage
Capacitor Start
Induction Run
Horse Power:
1/3
Voltage:
115/230v
Speeds:
1
Duty:
Continuous
Bearings:
Ball
Rotation:
CW
Phase:
1
Mount:
Rigid Base
Hertz:
60
Insulation Class:
B
Amperage:
8.6/4.3
RPM:
3450
Overload Protection:
Thermally
Poles:
2
Enclosure Type:
Drip Proof
Max Ambient Temp (°F):
104°F
×
