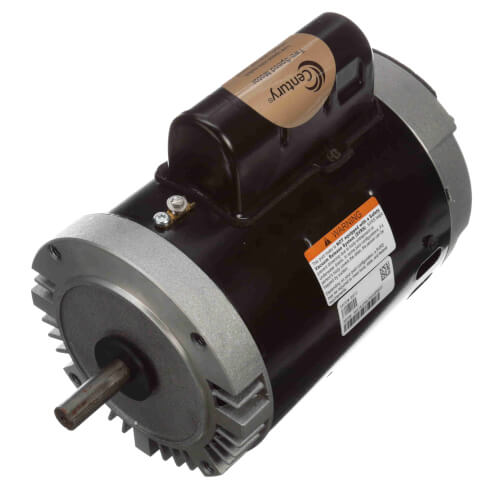

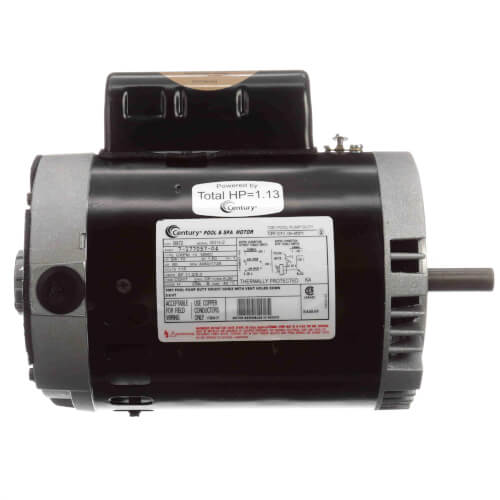

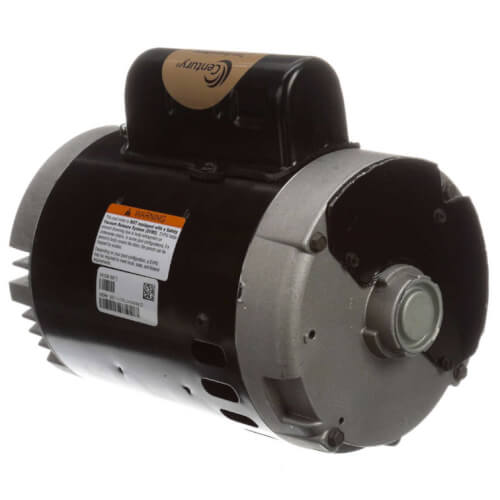

3/4-.10 HP 115v Pool Pump Motor, 1 PH, 3600 RPM, 56C Frame, ODP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$645.71 each
In Stock
Order by today, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1725, 3450, 3450/1725 RPM
CCWPE
3/4, 1/10 HP
C
11.2 Amps
Specs
–
| Type: | Permanent Split Capacitor High Speed Low Speed Split Phase |
|---|---|
| Horse Power: | 3/4 1/10 |
| Voltage: | 115V |
| Duty: | Continuous |
| RPM: | 1725 3450 3450/1725 |
| Bearings: | Ball |
| Mount: | C |
| Frame: | 56C |
| Amperage: | 11.2 |
| Rotation: | CCWPE |
| Enclosure Type: | Drip Proof |
| Speeds: | 2 |
| Insulation Class: | B |
| Overload Protection: | Thermally |
| Phase: | 1 |
| Poles: | 2 4 |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
