Description

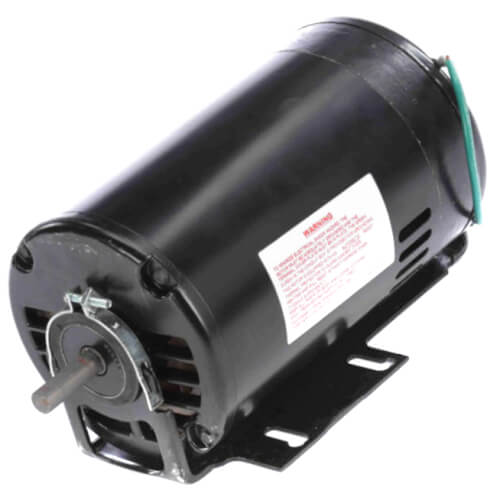

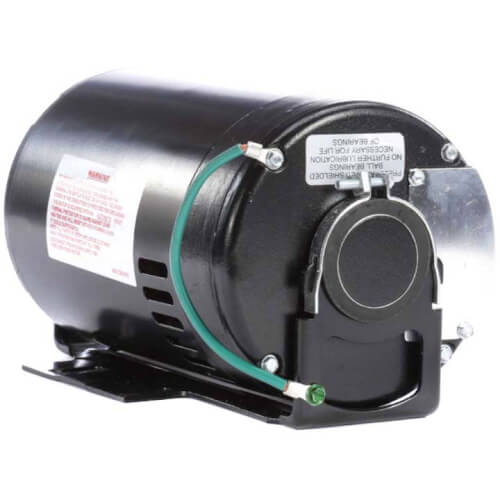

5-5/8" Capacitor Start Resilient Base Motor (115/208-230V, 1 HP, 3450 RPM)

Features:
  • High Start Torque
  • Open Construction
  • Reversible
  • 2,4, and 6 pole
  • 40°C Ambient
  • 60 Hz

    Applications:
    • Compressors
    • Pumps
    • Conveyors
    • Milking Machines
    • Blowers
    • Fans
Hide Description
Manuals (1)
Specs
Type:

Capacitor Start

Horse Power:

1

Voltage:

115/208-230v

Duty:

Continuous

Rotation:

Reversible

Bearings:

Ball

Mount:

Resilient Base

Poles:

2

Phase:

1

Hertz:

60

RPM:

3450

Frame:

48

Speeds:

3

Amperage:

12.6

6.3

Insulation Class:

A

Diameter (Inches):

5-5/8"

Overload Protection:

Automatic

Enclosure Type:

Open Drip Proof

Max Ambient Temp (°F):

104°F

×
