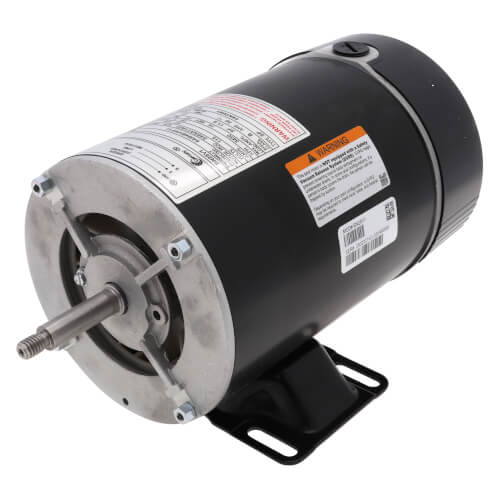

Flex-48 Above Ground Pool and Spa Motor w/ SS Shaft & Ball Bearing (115V, 3450 RPM, 1 HP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$224.80 each
In Stock
Order by 6PM, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
3450 RPM
CCWPE
1 HP
Thru Bolt
11.8 Amps
Description
–
Please Note: In accordance with Title 20 CCR Section 1605.3(g)(5), this item cannot be shipped to California.
Features:
Features:
- Century Above Ground Pool & Spa Motor
- 1 HP
- 115 Volt
- Type: Split Phase
- 12.0 Amps
- Single Speed
- 3450 RPM
- 1.0 Service Factor
- Ball Bearing
- Rigid Base
- Stainless Steel Threaded Shaft
- 48Y Frame
- Automatic Overload Protection
Specs
–
| Type: | Split Phase Single or Dual Voltage Induction Run |
|---|---|
| Bearings: | Ball |
| Voltage: | 115V |
| Duty: | Continuous |
| Horse Power: | 1 |
| RPM: | 3450 |
| Rotation: | CCWPE |
| Phase: | 1 |
| Mount: | Thru Bolt |
| Frame: | 48Y |
| Hertz: | 60 |
| Speeds: | 1 |
| Amperage: | 11.8 |
| Insulation Class: | B |
| Overload Protection: | Thermally |
| Enclosure Type: | Open Drip Proof |
| Poles: | 2 |
| Max Ambient Temp (°F): | 122°F |
| Motor Orientation: | Horizontal |
Contact
+
Questions?
Customer Support has a delayed opening today for a monthly team meeting to better support you.
Call or text 888-757-4774
Special Hours
9:05am–7:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4 out of 1 review
100% would recommend this product
5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Almost exact replacement for Hayward PowerFlo pump
This BB25V1 will bolt up exactly like the original 1HP 48Y AO Smith spx1510z1xe motor. You could reuse the original input AC power line. Differences are the startup circuit (a new design replaced the SCN-471 startup switch) AND there is no built in On/Off SPST toggle switch. Also, this design makes it harder to hold the shaft still when removing/ installing the impeller
HooperPC
Freeland, MD
14 days ago
