Description

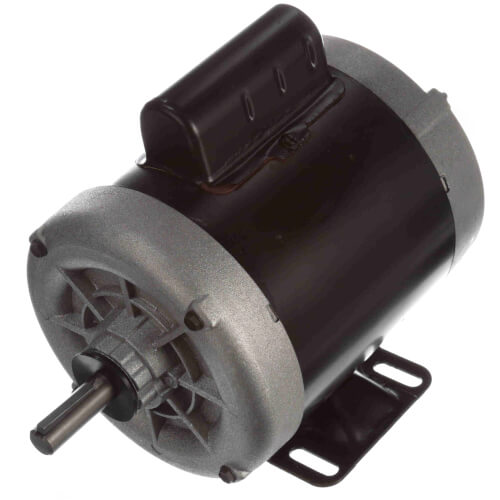

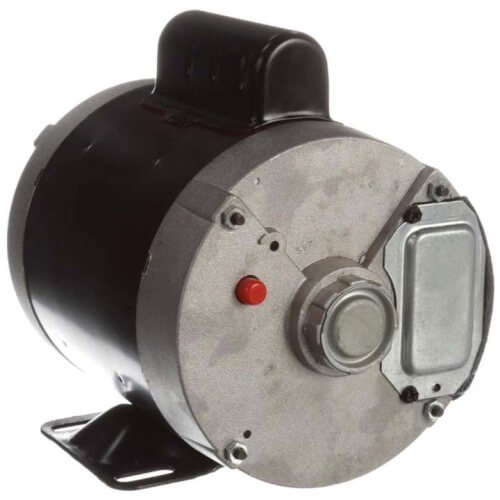

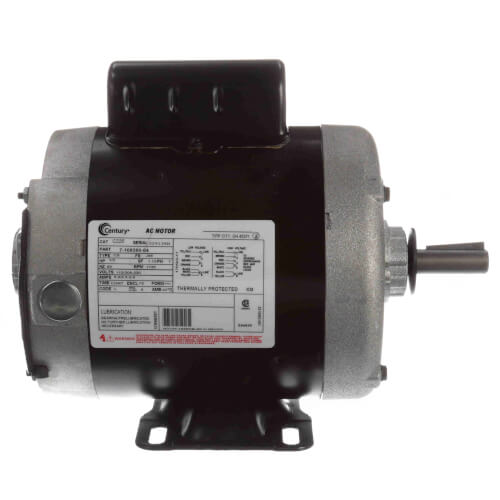

6-1/2" Capacitor Start Enclosed Rigid Base Motor (115/208-230V, 1725 RPM, 1/3 HP)

Features:
  • Capacitor Start
  • Rigid Base
  • High Start Torque
  • 40C Ambient
  • Open Dripproof
  • 60 Hz
  • Reversible
Read more
Manuals (1)
Specs
Type:
Single or Dual Voltage
Induction Run
Capacitor Start
Horse Power:
1/3
Bearings:
Ball
Voltage:
115/208-230v
Duty:
Continuous
Speeds:
1
RPM:
1725
Phase:
1
Mount:
Rigid Base
Rotation:
RCCW
Hertz:
60
Frame:
56
Amperage:
5.2/2.5 - 2.6
2.6
5.2
2.5
Insulation Class:
A
Overload Protection:
Thermally
Poles:
4
Enclosure Type:
Totally Enclosed Non-Ventilated (TENV)
Max Ambient Temp (°F):
104°F
×
