Description

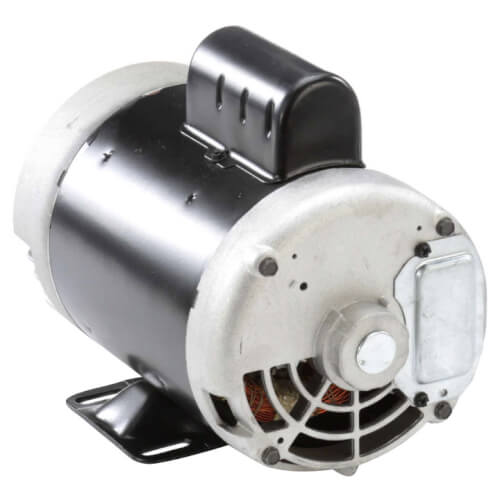

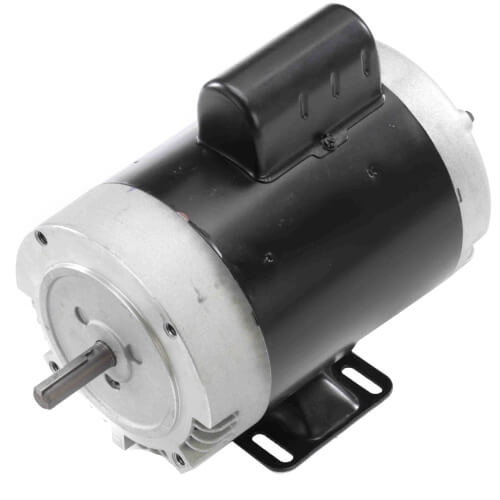

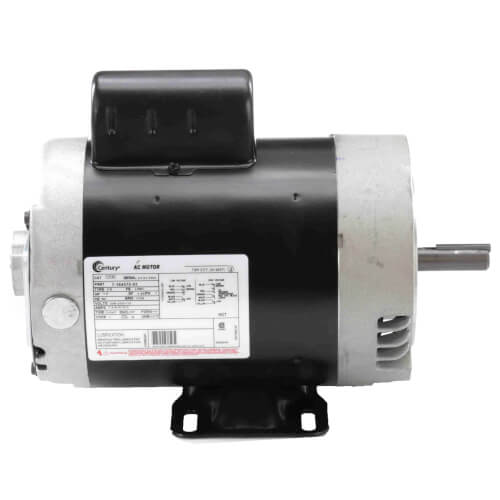

Capacitor Start ODP Rigid Base Motor, 1 HP, 1725 RPM (208-230/115V)

Applications: Applications: Designed for industrial and commercial pumps, speed reducers and other equipment that mounts directly on a NEMA “C” Face type motor.

Features:
  • Ball Bearing
  • 40C Ambient
  • Class B Insulation
  • 60 Hz
  • Reversible

Note: Image may not be actual representation of item .
Read more
Manuals (1)
Specs
Product Type:
Motor
Type:
Single or Dual Voltage
Capacitor Start
Induction Run
Frame:
56C
Horse Power:
1
Voltage:
208-230/115V
Duty:
Continuous
Bearings:
Ball
Speeds:
1
Mount:
Rigid Base
Rotation:
RCCW
Phase:
1
Hertz:
60
Insulation Class:
B
Amperage:
7.2 - 6.5/13
RPM:
1725
Overload Protection:
None
Enclosure Type:
Drip Proof
Poles:
4
Max Ambient Temp (°F):
104°F
×
